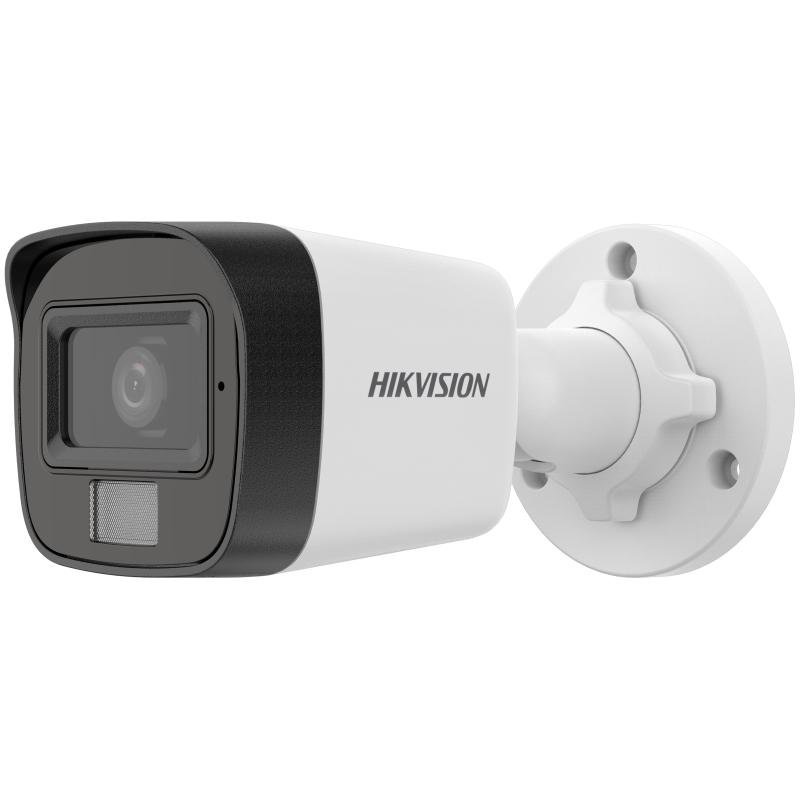

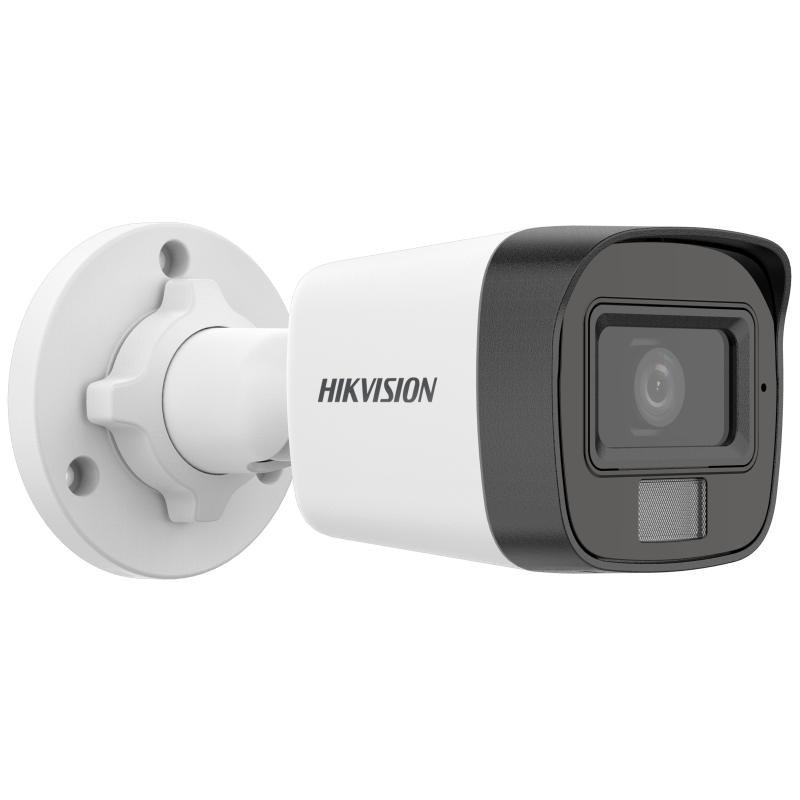

DS-2CD1021G2-LIU(F)
2 MP Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- Support Human Detection
- Smart Hybrid Light: advanced technology with long range coverage
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
- Easy installation with Power over Ethernet (PoE) technology
- Support on-board storage up to 512 GB (SD card slot)
Description
- Image Sensor 1/2.9″ Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
- 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
- Lens Mount M12
- Iris Type Fixed
- Aperture F2.2
- DORI
- DORI
- 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
- 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range
- IR: up to 20 m
- White Light: up to 15 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Audio
- Audio Type Mono sound
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz
- Audio Compression G.711ulaw/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Network
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- Client iVMS-4200,Hik-Connect
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Wide Dynamic Range (WDR) Digital WDR
- SNR ≥ 52 dB
- Privacy Mask 1 programmable polygon privacy mask
- Day/Night Switch Day,Night,Auto,Schedule
- Image Enhancement BLC,HLC,3D DNR
- Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
- NA
- Built-in Microphone Yes,1 built-in microphone
- Reset Key
- NA
- Event
- Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
- Linkage Notify surveillance center, send email, trigger capture;Notify surveillance center, send email, trigger recording, trigger capture
- General
- Power
- 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 6.5 W
- Material Plastic
- Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.5″ × 2.4″ × 2.3″)
- Package Dimension 163 mm × 75 mm × 75 mm (6.4″ × 3.0″ × 3.0″)
- Approx. 175 g (0.4 lb.)
- With Package Weight Approx. 250 g (0.55 lb.)
- Storage Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- EMC
- FCC: 47 CFR Part 15, Subpart B,
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- Safety
- CB: IEC 62368-1: 2014+A11,
- CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
- CE-RoHS: 2011/65/EU,
- WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
