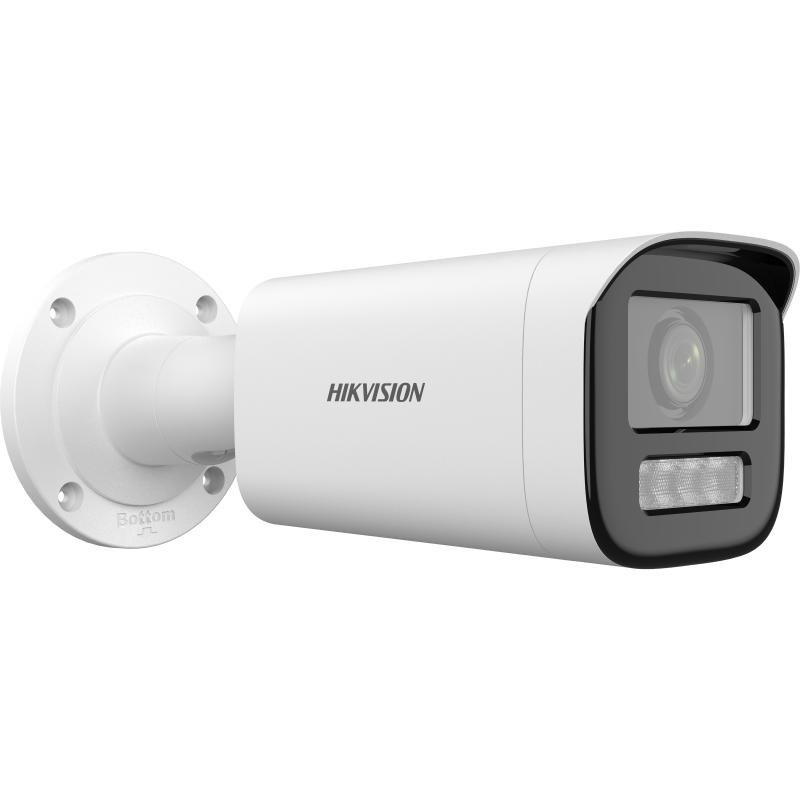

DS-2CD1643G2-LIZ(S)U
4 MP Dual Light MD 2.0 Varifocal Bullet Network Camera
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Built-in microphone for real-time audio security
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67)
Description
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34°
- Lens MountØ14
- Iris TypeFixed
- ApertureF1.6
- DORI
- DORID: 64.0 to 198.0 m, O: 25.4 to 78.6 m, R: 12.8 to 39.6 m, I: 6.4 to 19.8 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 50 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
- 50 Hz:
- 20 fps (2560 × 1440)
- 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz:
- 20 fps (2560 × 1440)
- 24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes,1 built-in microphone
- Audio
- -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
- -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)
- Reset KeyYes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output
- General
- Power
- 12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 12.9 W
- MaterialMetal & Plastic
- Dimension
- Ø105 mm × 252 mm (Ø4.13 × 9.92″)”
- Package Dimension315 mm × 137 mm × 141 mm (12.40″ × 5.39″ × 5.55″)
- WeightApprox. 585 g (1.3 lb.)
- With Package WeightApprox. 910 g (2.0 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,mirror,password reset via email,password protection,anti-banding
- Approval
- EMC
- CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
- RCM: AS/NZS CISPR 32: 2015,
- IC: ICES-003: Issue 7
- Safety
- UL: UL 62368-1,
- CB: IEC 62368-1: 2014+A11,
- CE-LVD: EN 62368-1: 2014/A11: 2017,
- BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
- CE-RoHS: 2011/65/EU,
- WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
