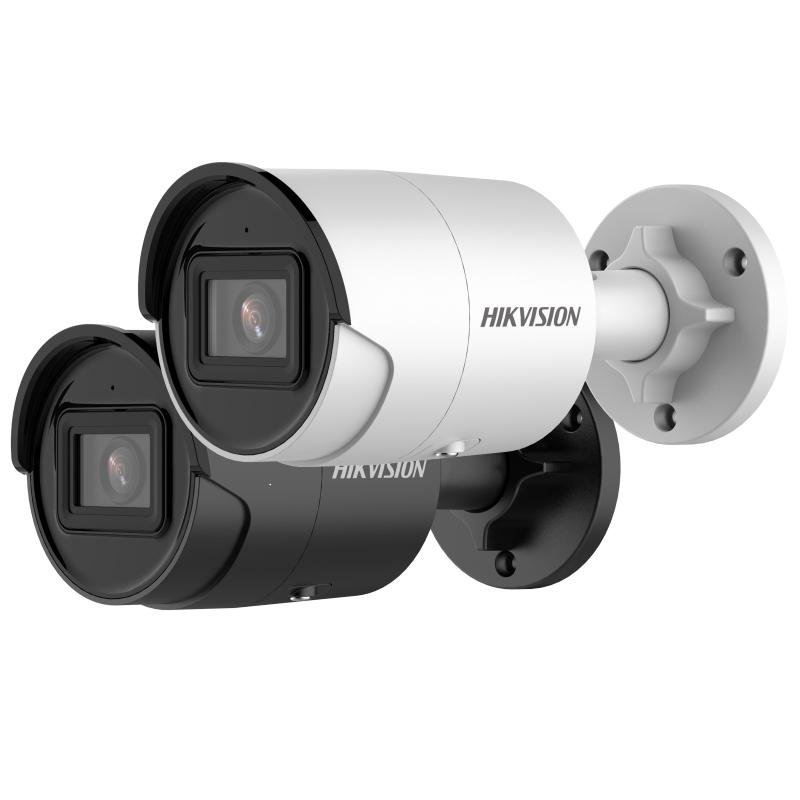

DS-2CD2083G2-I(U)
8 MP AcuSense Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- Focusing on human and vehicle classification based on deep learning
- -U: Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
Description
- Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
- 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
- 6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
- DORI
- 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
- 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m
- 6 mm: D: 177 m, O: 70 m, R: 35 m, I: 18 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
- 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
- *Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG,
- Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
- Region of Interest (ROI)1 fixed region(s) for main stream and sub-stream
- Audio
- Audio Type-U: Mono sound
- Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering-U: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
- Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
- Built-in Microphone-U: Yes
- Reset KeyYes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
- General
- Power
- 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.2 W
- Dimension
- Ø70 mm × 161.7 mm (Ø2.8 × 6.4″)”
- MaterialAluminum alloy body, bubble: plastic
- Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
- WeightApprox. 495 g (1.1 lb.)
- With Package WeightApprox. 759 g (1.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
- 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter
- Approval
- EMC
- FCC: 47 CFR Part 15, Subpart B,
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
- RCM: AS/NZS CISPR 32: 2015,
- IC: ICES-003: Issue 7,
- KC: KN32: 2015, KN35: 2015
- Environment
- CE-RoHS: 2011/65/EU,
- WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
- Safety
- UL: UL 62368-1,
- CB: IEC 62368-1: 2014+A11,
- CE-LVD: EN 62368-1: 2014/A11: 2017,
- BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
