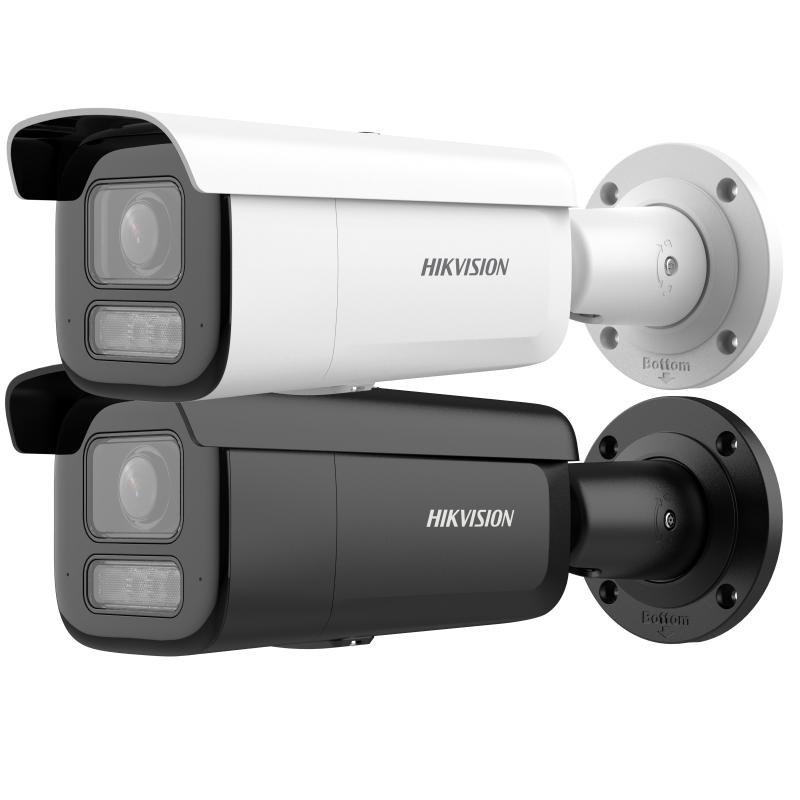

DS-2CD2646G2-IZS
4 MP AcuSense Motorized Varifocal Bullet Network Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Motorized varifocal lens for easy installation
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Audio and alarm interface available
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP66) and vandal-resistant (IK10)
Description
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
- Lens MountØ14
- Iris TypeFixed
- ApertureF1.4
- DORI
- DORI
- 2.8 to 12 mm:
- Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
- Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- IR WavelengthYes
- Video
- Main Stream
- 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- *Third stream is supported under certain settings.
- Video Compression
- Main stream: H.265/H.264/H.265+/H.264+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- *Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio TypeMono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T), ISAPI, ISUP, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
- NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
- Audio
- 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
- 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset KeyYes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
- Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
- Scene change detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
- Deep Learning Function
- Face CaptureYes
- General
- Power
- 12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection
- PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
- MaterialADC12
- DimensionØ144.1 mm × 345.7 mm (Ø5.7″ × 13.6″)
- Package Dimension385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
- WeightApprox. 1445 g (3.2 lb.)
- With Package WeightApprox. 2571 g (5.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
- 33 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
- Safety
- UL (UL 60950-1);
- CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
- CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
- LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIK10: IEC 62262:2002,IP66: IEC 60529-2013
