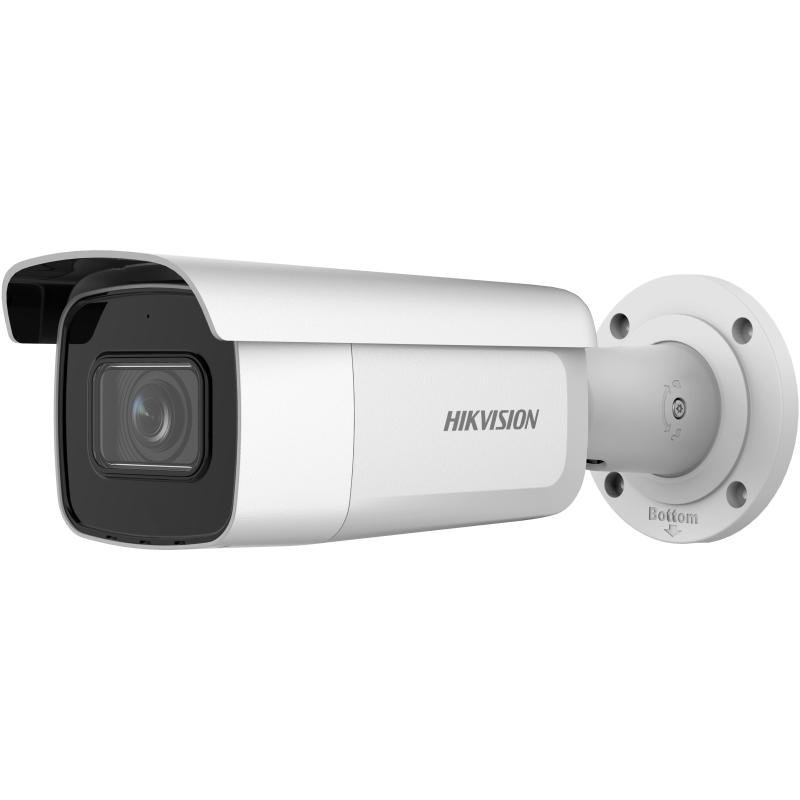

DS-2CD2663G2-IZS
6 MP AcuSense Motorized Varifocal Bullet Network Camera
- High quality imaging with 6 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal-resistant (IK10)
Description
- Camera
- Image Sensor 1/2.4″ Progressive Scan CMOS
- Max. Resolution 3200 × 1800
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV 2.8 to 12 mm, horizontal FOV 106° to 35°, vertical FOV 56° to 20°, diagonal FOV 127° to 41°
- Lens Mount Ø14
- Iris Type Fixed
- Aperture F1.6
- DORI
- DORI
- 2.8 to 12 mm:
- Wide: D: 68 m, O: 27 m, R: 13 m, I: 7 m
- Tele: D: 200 m, O: 79 m, R: 40 m, I: 20 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 60 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- *Third stream is supported under certain settings.
- Video Compression
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- *Third stream is supported under certain settings.
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR/VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log，TLS 1.1/1.2/1.3，host authentication (MAC address)
- Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
- Plug-in required live view: IE 10, IE 11
- Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR) 120 dB
- SNR ≥ 52 dB
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask 4 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
- Audio
- 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
- 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1A)
- Reset Key Yes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
- Line crossing detection, intrusion detection
- Supports human and vehicle targets classification
- Face detection
- Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output
- General
- Power
- 12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
- PoE: IEEE 802.3at, Class 4, max. 15 W
- Dimension 308.5 mm × 97.9 mm × 93 mm (12.2″ × 3.9″ × 3.7″)
- Package Dimension 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
- Approx. 1385 g (3.1 lb.)
- With Package Weight Approx. 2046 g (4.5 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
- 33 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Heartbeat, mirror, password reset via email, pixel counter, anti-flicker
- Approval
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
