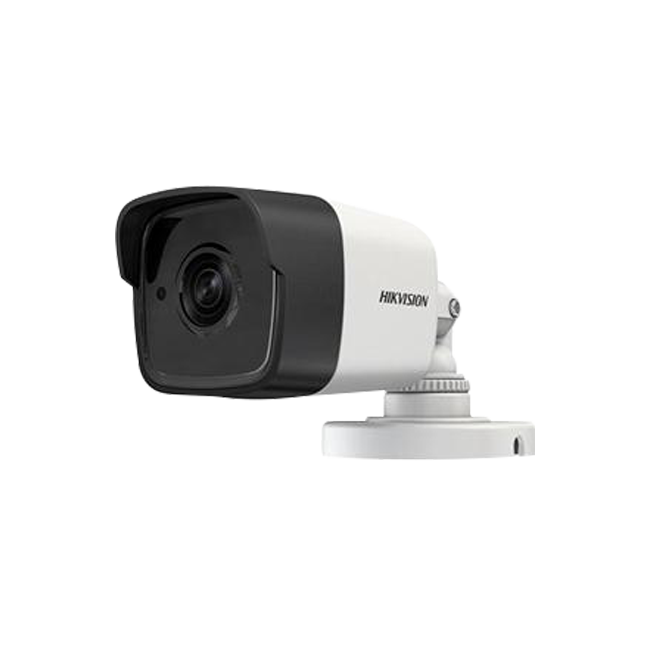

DS-2CE16H0T-ITPF(C)
5 MP Fixed Mini Bullet Camera
- 5 MP bullet camera
- EXIR 2.0: advanced infrared technology with 25 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Description
- Camera
- Image Sensor5 MP CMOS image sensor
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
- 2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142°
- 2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
- 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
- 6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame Rate
- TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
- AHD: 5M@20fps, 4M@30fps, 4M@25fps
- CVI: 4M@30fps, 4M@25fps
- CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialPlastic
- Dimension60.9 mm × 57.9 mm × 138.8 mm (2.39″ × 2.28″ × 5.47″)
- Approx. 147 g (0.32 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ±25%
- Consumption
- Max. 4.3 W
- IR RangeUp to 25 m
- Approval
- ProtectionIP67
