DS-2CE76D0T-EXIPF
2 MP Indoor Fixed Turret Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm, 3.6 mm fixed lens
- Up to 20 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
Description
- Camera
- Image Sensor2 MP CMOS
- Signal SystemPAL/NTSC
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Lens
- Lens Type2.8 mm, 3.6 mm Fixed Lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
- 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
- Lens MountM12
- Illuminator
- Supplement Light RangeUp to 20 m
- Image
- Frame Rate
- TVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Wide Dynamic Range (WDR)Digital WDR
- Image Parameters SwitchSTD/HIGH-SAT
- Day/Night ModeAuto/Color/BW (Black and White)
- White BalanceAuto
- Image EnhancementDWDR, BLC, Global
- Noise Reduction2D DNR
- Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- LanguageEnglish
- Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- MaterialPlastic
- CommunicationHIKVISION-C
- DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
- Approx. 195g (0.43 lb.)
- Power12 VDC ± 25%, Max. 3.3 W
Reviews (0)
Additional Information
Related products
DS-2CE10KF0T-LPXTS
3K Two Way Audio & Siren Fixed Mini Bullet Camera
- High quality imaging with 3K, 2960 × 1664 resolution
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid Light, optimize your security with flexible lighting options
- 3D DNR technology delivers clean and sharp images
- Up to 20 m white light and 25 m IR distance for bright night imaging
- Active strobe light and audio alarm to warn intruders off
- Built-in mic and built-in speaker，high quality audio with audio over coaxial cable
- Provide real-time communication via built-in two-way audio
- Water and dust resistant (IP67)
DS-2CE70DF0T-PF
2 MP ColorVu Indoor Fixed Turret Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6 mmfixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)

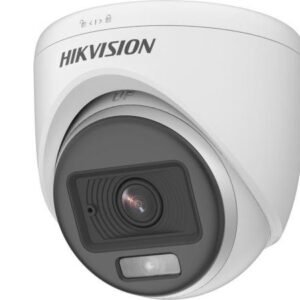

DS-2CE70KF0T-PFS
3K ColorVu Indoor Audio Fixed Turret Camera
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- High quality audio with audio over coaxial cable, built-in mic

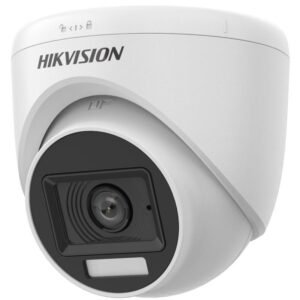

DS-2CE76K0T-LPFS
