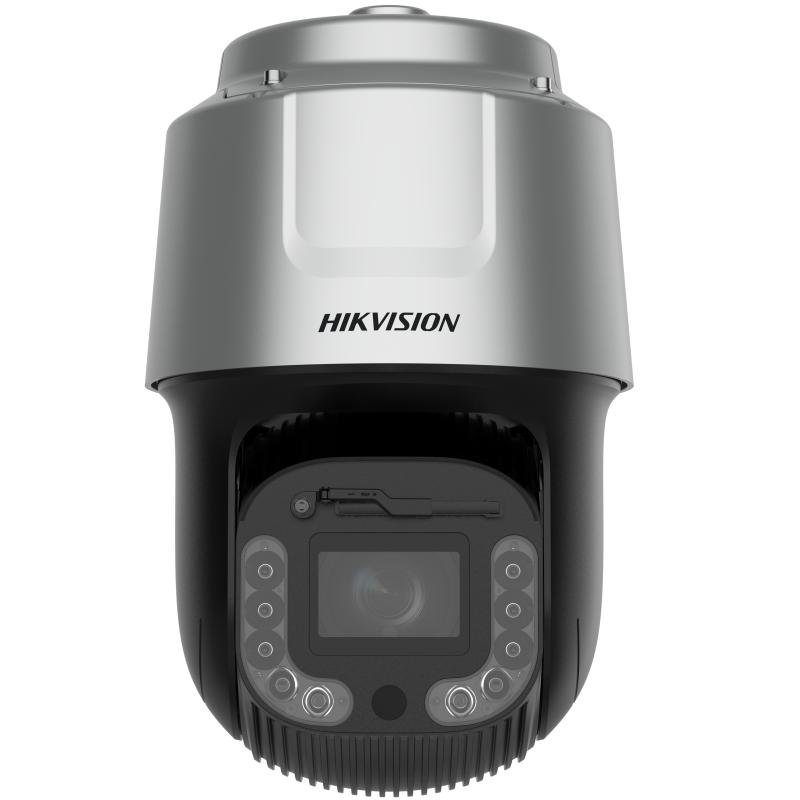

DS-2DF8C848I5XG1-ELW
DF8C Series 8MP 48X DarkFighter Laser Network Speed Dome
- 1/1.2″ Progressive Scan CMOS
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB AWDR technology
- 48 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Expansive night view with up to 500 m laser distance
- Water and dust resistant (IP67) and vandal proof (IK10) excluding glass window
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles
- Smart Pan-Tilt Correction
Description
- Camera
- Image Sensor1/1.2＂ progressive scan CMOS
- Min. IlluminationColor: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1/1 s to 1/30,000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom48x optical, 16x digital
- Max. Resolution3840 × 2160
- Lens
- FocusAuto, semi-auto, manual, rapid focus
- Focal Length6.0 mm to 288 mm, 48× Optical
- Zoom Speedapprox. 7.8 s (optical, wide-tele)
- FOV
- Horizontal field of view: 61.0° to 1.7° (wide-tele),
- Vertical field of view: 35.9° to 1.0° (wide-tele),
- Diagonal field of view: 68.5° to 1.9° (wide-tele)
- ApertureMax. F1.6
- Illuminator
- Supplement Light TypeLaser
- Supplement Light RangeLaser Distance: up to 500 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°，Smart Pan-Tilt Correction
- Movement Range (Tilt)-20° to 90° (auto flip)，Smart Pan-Tilt Correction
- Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Target CroppingNo
- Main Stream
- 50 Hz: 50 fps (3840 × 2160, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720);
- 60 Hz: 60 fps (3840 × 2160, 2560 × 1440), 120 fps(1920 × 1080, 1280 × 960, 1280 × 720)
- *High frame rate is supported under monitoring mode only.
- Sub-Stream
- 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM，AAC_LC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC_LC)
- Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz
- Environment Noise FilteringYes
- Network
- Smooth StreamingYes
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- Network StorageNAS (NFS, SMB/ CIFS), ANR
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour，WebSocket，WebSockets
- APIISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users 3 user levels: administrator, operator, and user
- ClientHikCentral, iVMS-4200, Hik-Connect
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Day/Night SwitchDay, night, auto, scheduled-switch
- Image EnhancementBLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)140 dB
- DefogOptical defog
- Image StabilizationOIS
- Regional ExposureYes
- Regional FocusYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters SwitchYes
- Privacy MaskUp to 24 masks, mosaic mask, mask color configurable, rectangle region
- SNR≥ 52 dB
- Supplement Detection
- Satellite PositioningNo
- GyroscopeYes
- CompassNo
- Interface
- Video Output1.0 V[p-p]/75 Ω, PAL, NTSC, BNC connector
- ResetYes
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 1 TB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Perimeter ProtectionLine crossing detection, region entrance detection, intrusion detection, region exiting detection
- Multi-Target-Type Detection
- Supports simultaneous detection and capture of human body, face and vehicle,
- Gets 7 face features, 14 human body features and 8 vehicle features
- Face Capture
- Detects up to 30 faces simultaneously,
- Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- Face Comparison
- Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,
- Recognizes face identity via face modeling, grading and comparing to those in face library,
- Supports face library encryption
- Road Traffic and Vehicle Detection
- Smart Function:
- Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
- Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
- Support vehicle and non-vehicle counting
- Blocklist and allowlist: up to 10,000 records
- LPR Countries/Regions:
- 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
- Accuracy (Under recommended installation and lighting conditions):
- License plate recognition rate ≥98%
- Capture rate ≥99%
- Driving direction accuracy rate ≥98%
- Vehicle Capture Speed:
- Front installation in checkpoint scenario: up to 120 km/h
- Side installation: up to 80 km/h
- Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking 3.0
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- General
- Power36 VDC(Max. 60 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3bt, type3, class6 (Max. 60 W, including max. 12 W for IR and max. 8 W for heater)
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- General FunctionAnti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams
- Vandal-proof AlarmNo
- HeaterYes
- De-icingNo
- DemistYes
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- WiperYes. Rain-sensing auto control
- DimensionØ 267 mm × 430 mm (Ø 10.51″ × 16.93″)
- Approx. 9.6 kg (21.16 lb.)
- Approval
- EMC
- CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
- RCM (AS/NZS CISPR 32: 2015);
- IC VoC (ICES-003: Issue 6, 2019);
- KC (KN 32: 2015, KN 35: 2015)
- Safety
- CB (IEC 62368-1:2014+A11);
- CE-LVD (EN 62368-1:2014+A11:2017),
- BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
- LOA (SANS IEC60950-1)
- Environment
- CE-RoHS (2011/65/EU);
- WEEE (2012/19/EU);
- Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
