DS-2SE2C400MWG-E/14

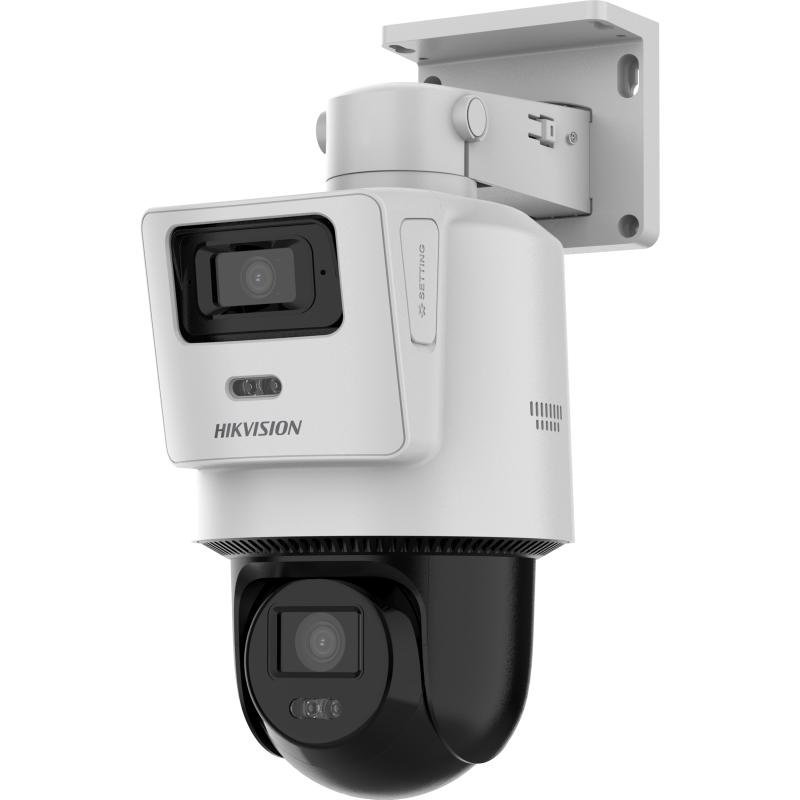

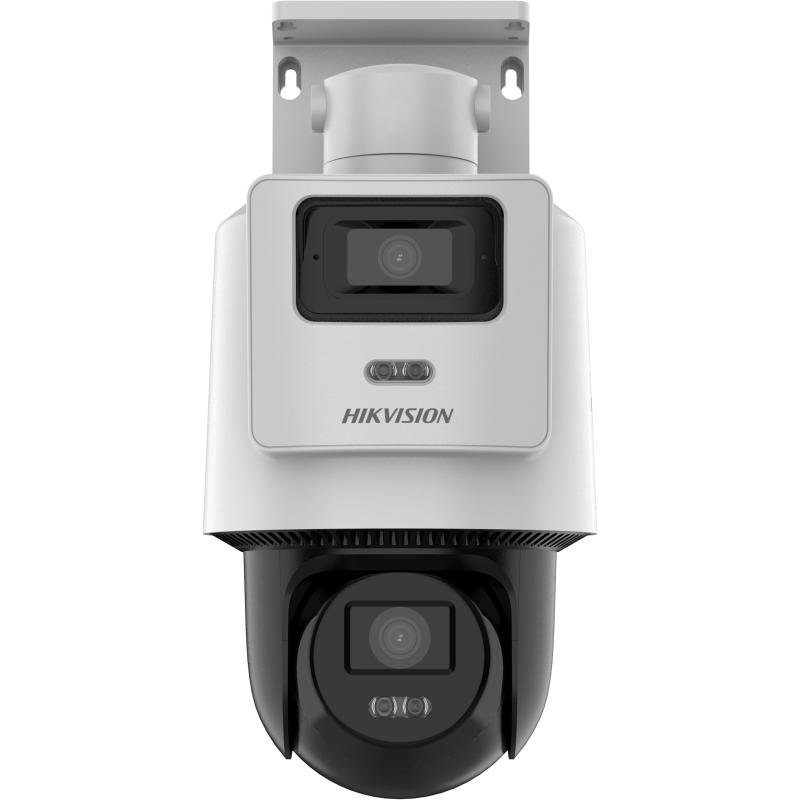

TandemVu 4MP+4MP Fixed Lens POE PT Network Camera
- Capture a large area and details at the same time
- Support Human and Vehicle detection
- Smart Hybrid Light: advanced technology with long range
- Hik-Connect cloud service and app for remote management and views of devices
- Built-in microphone and speaker for real-time audio security
- Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
- Water and dust resistant (IP66)
Description
- Camera
- Image Sensor
- [Bullet channel]
- 1/2.8 Progressive Scan CMOS
- [PTZ channel]
- 1/2.8 Progressive Scan CMOS”
- Min. Illumination
- [Bullet channel]
- Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
- [PTZ channel]
- Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR
- Shutter Speed1 s to 1/30,000 s
- Slow ShutterYes
- Day & NightICR
- Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
- Lens
- Focal Length[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
- FOV
- [Panoramic channel]
- horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°,
- [PTZ channel]
- horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51°
- Aperture[Bullet channel] F1.6, [PTZ channel] F1.6
- Illuminator
- Supplement Light Type[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
- Supplement Light Range[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
- Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
- Pan SpeedPan speed: configurable from 4° to 25°/s, preset speed: 25°/s
- Tilt SpeedTilt speed: configurable from 4° to 20°/s, preset speed 20°/s
- Presets300
- Power-off MemoryYes
- Video
- Scalable Video Coding (SVC)Yes
- Region of Interest (ROI)1 fixed region for main stream
- Main Stream
- [Bullet channel]
- 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- [PTZ channel]
- 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
- [Bullet channel]
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- [PTZ channel]
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265/H.264/Smart264/Smart265,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 4 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect,Hik Partner Pro
- Web BrowserChrome 31 to 44, Firefox 30 to 51, Safari 8.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Day/Night SwitchDay,night,auto,schedule
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask[Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks
- Image Parameters SwitchYes
- Interface
- Built-in Microphone1 built-in microphone
- Built-in Speaker1 built-in speaker
- Ethernet Interface1 RJ45 10 M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- ResetYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), exception
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning
- General
- MaterialPC
- General FunctionMirror,password protection,watermark,IP address filter
- Power
- 12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
- PoE: IEEE 802.3at, Class 4, max. 21.5 W
- Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
- Dimension134 mm × 213.5 mm × 291.7 mm (5.3″ × 8.4″ × 11.5″)
- Weight: 1000 g (2.2 lb.)
- With Package Weight: 1500 g (3.3 lb.)
- Approval
- ProtectionIP66 Standard, Surge Protection and Voltage Transient Protection
