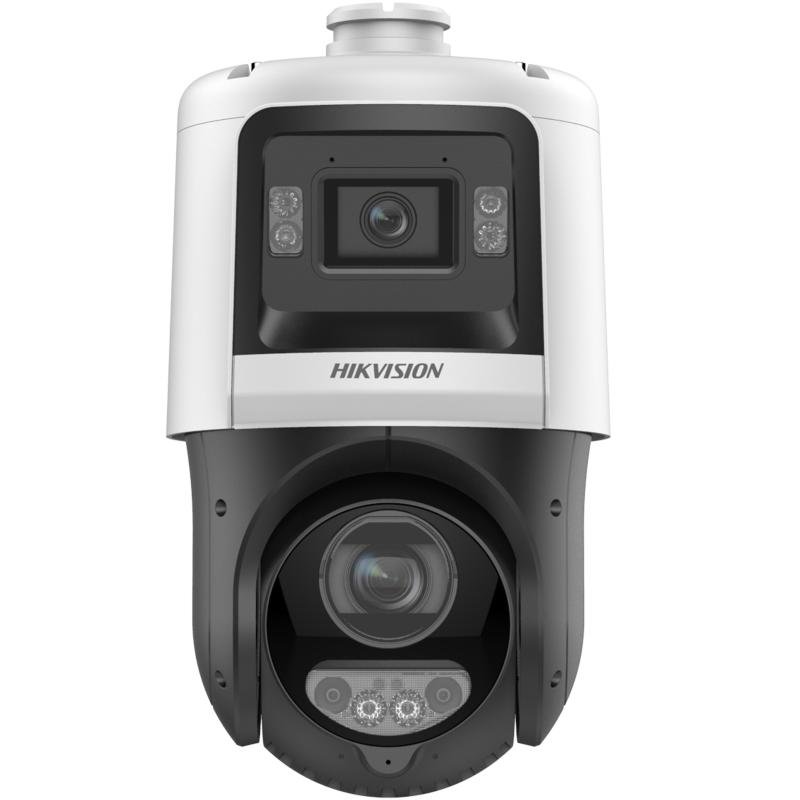

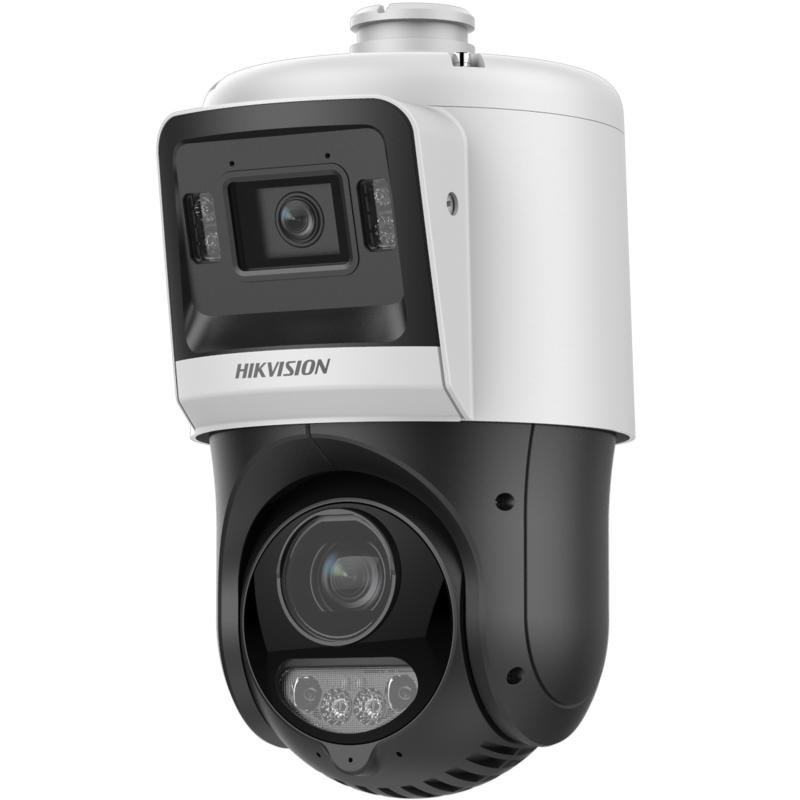

DS-2SE4C225MWG-E/12
TandemVu 2+2MP 25X ColorVu & IR Acusense Network Speed Dome
- Captures a large area and great details at the same time
- High quality imaging with 2 MP resolution
- Focuses on human and vehicle targets classification based on deep learning
- Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
- Secures an expansive area with 25 × optical zoom and 16 × digital zoom
- Expansive night view with up to 100 m IR distance & 30 m white light
- Build-in speaker and dual-microphone for real-time high quality audio security
- Active strobe light and audio alarm to warn intruders off
- Supports 12 VDC & PoE+
Description
- Camera
- Image Sensor[Bullet channel] 1/2.8″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
- Max. Resolution[Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080
- Min. Illumination
- [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
- [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Day & NightICR
- Zoom[PTZ channel] 25 × optical, 16 × digital
- Slow Shutteryes
- Lens
- Focal Length[Bullet channel] 2.8 mm, [PTZ channel] 5 to 125 mm
- FOV[Bullet channel] horizontal field of view: 106.1°, vertical field of view: 56.8°, diagonal field of view: 126.5°, [PTZ channel] horizontal field of view: 55° to 2.8°, vertical field of view: 33° to 1.5°, diagonal field of view: 61.5° to 3.2°
- Focusauto,manual,semi-auto
- Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
- Zoom Speed[PTZ channel]: approx. 2.3 s
- Illuminator
- Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
- Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)[Bullet channel] 9° to 21° (manually adjust), [PTZ channel] -15° to 90°
- Pan SpeedPan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Panyes
- Presets300
- Preset Freezingyes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Park Actionpreset,frame scan,tilt scan,patrol scan,random scan,auto scan,pattern scan,panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Scheduled TaskPreset,pattern scan,patrol scan,tilt scan,auto scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Power-off Memoryyes
- Video
- Main Stream
- [Bullet channel]:
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- [PTZ channel]:
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
- [Bullet channel]:
- 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- [PTZ channel]:
- 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
- [Bullet channel]:
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- [PTZ channel]:
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265,H.264,MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typemain profile,baseline profile,high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
- Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
- Audio Sampling RateMP2L2: 16 kHz, 32kHz, 48 kHz,AAC-LC: 16 kHz, 32kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32kHz, 48 kHz,MP3: 8 kHz, 16 kHz, 32kHz, 48 kHz
- Environment Noise Filteringyes
- Network
- ProtocolsDHCP,FTP,HTTPS,TCP/IP,ICMP,HTTP,SFTP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets
- Simultaneous Live View20
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host32
- Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
- Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ClientiVMS-4200,HikCentral Pro,Hik-Connect
- Web BrowserIE 11, Chrome 80+, Firefox 80+, Safari 13+
- Image
- Image Parameters SwitchYes
- Image Settingssharpness,saturation,brightness,contrast
- Day/Night Switchday, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)True WDR
- SNR＞52dB
- DefogDigital defog
- Image StabilizationEIS
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Regional Focusyes
- Regional Exposureyes
- Interface
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
- Alarm1 alarm input, 1 alarm output
- Resetyes
- Built-in Microphone2 built-in microphones,picking up sounds in the radius up to 8 m
- Built-in Speaker1 built-in speaker, with effective distance reaching max. 20 m
- Event
- Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,audio exception detection
- Smart Eventaudio exception detection,region exiting detection,region entrance detection,intrusion detection,Line crossing detection
- Linkage [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, strobe light and audio alarm, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Face Capture
- Detects up to 5 faces simultaneously,
- Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage method. Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
- Linkage and Tracking
- Smart Linkagemanual tracking, linked tracking capture，tracking in turn
- General
- Power
- 12 VDC, 3.33 A
- PoE: IEEE 802.3at, 42.5 to 57.2 V, 0.6 A
- DimensionØ166 mm × 294.8 mm (Ø6.5″ × 11.6″)
- Approx. 3.0 kg (16.5 lb.)
- MaterialADC12
- Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
- General Functionmirror, password protection, watermark, IP address filter
- DemistDemist by heating the glass
- Approval
- ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
