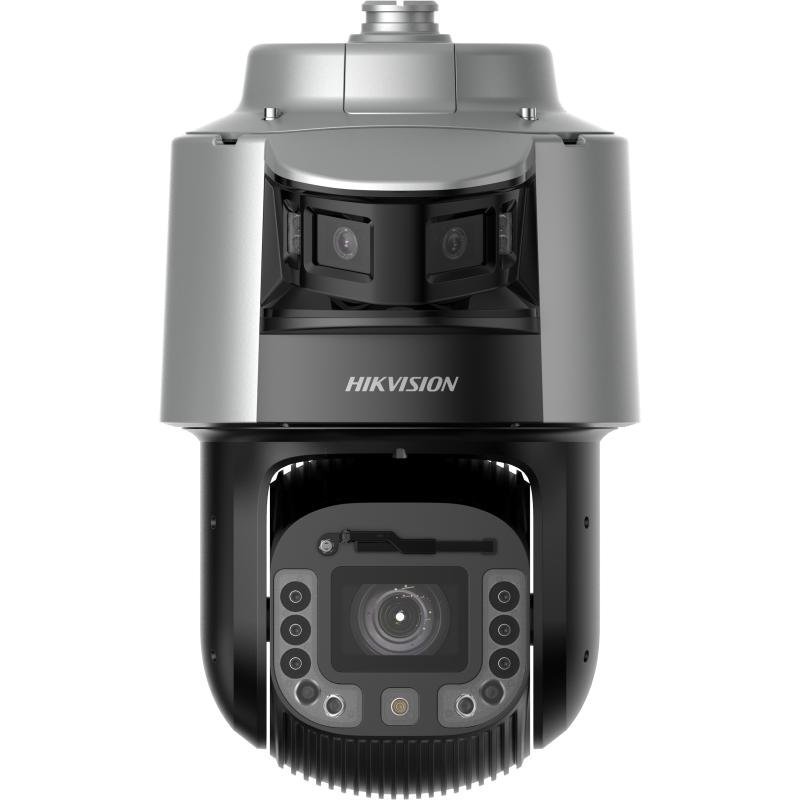

DS-2SF8C848MXG1-EL(W)(Y)/26
TandemVu 8C Series Panoramic 8 MP 48X DarkFighter Network Speed Dome
- Captures a large area and great details at the same time
- High quality imaging with 6 MP resolution for bullet channel, 8MP for PTZ channel
- 24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
- Panoramic channel tilt adjustable from 12° to 24°
- Secures an expansive area with 48 × optical zoom and 16 × digital zoom
- Expansive night view with up to 30 m white light distance and 500 m IR distance
- Supports deep learning functions
- Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
- Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
Description
- Camera
- Image Sensor[Bullet channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/1.2″ Progressive Scan CMOS
- Min. Illumination
- [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,
- [PTZ channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 lux with IR
- Shutter Speed1 s to 1/30000 s
- Slow ShutterYes
- Day & Night[Panoramic channel] Color, [PTZ channel] IR cut filter
- Zoom[PTZ channel] 48 × optical, 16 × digital
- Max. Resolution[Panoramic channel] 3680 × 1656, [PTZ channel] 3840 × 2160
- Lens
- FOV[Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°
- FocusAuto,semi-auto,manual
- Zoom Speed[Panoramic channel] No, [PTZ channel] approx. 5.6 s
- Focal Length[Panoramic channel] 4 mm, [PTZ channel] 6.25 to 300 mm
- Aperture[Panoramic channel] F1.0, [PTZ channel] F1.6
- Illuminator
- Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] Laser: up to 500 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)[Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
- Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
- Tilt Speed[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable
- Proportional Pan[Panoramic channel] No, [PTZ channel] Yes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Video
- Main Stream
- [Panoramic channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632)
- [PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (3840 × 2160, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- *High frame rate is supported under monitoring mode only.
- Sub-Stream[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480,640 × 480,352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960×432), 60 Hz: 30 fps (1200 × 536、960×432)
- Third Stream[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG,
- Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
- Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.722.1),8-48 Kbps (PCM),64 Kbps (G.711),16 Kbps (G.726)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise FilteringYes
- Network
- API ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
- Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark, TPM 2.0 (FIPS 140-2 level 2)
- ClientiVMS-4200,HikCentral Pro,Hik-Connect
- Web Browser
- Plug-in required live view: IE8+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
- Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Wide Dynamic Range (WDR)[Bullet channel] 120 dB, [PTZ channel] 140 dB
- Day/Night SwitchDay,night,auto,schedule
- Image EnhancementHLC,3D DNR
- Privacy Mask[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- DefogOptical defog
- Image StabilizationOIS
- Regional ExposureYes
- Regional Focus[Panoramic channel] No, [PTZ channel] Yes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters SwitchYes
- SNR≥ 52 dB
- Supplement Detection
- Satellite PositioningNo
- GyroscopeYes
- CompassNo
- Interface
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
- Built-in Speaker1 built-in speaker
- Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
- Alarm7 input(s), 2 output(s)
- Audio
- 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
- 1 output (line out), line level, output impedance: 600 Ω
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- Event
- Basic Event[PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] video tampering alarm
- Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
- Linkage[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Face Capture
- Detects up to 30 faces simultaneously,
- Uploads face with background and closed-up face pictures
- Face Comparison
- Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,
- Recognizes face identity via face modeling, grading and comparing to those in face library,
- Supports face library encryption
- Road Traffic and Vehicle Detection
- Smart Function:
- Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
- Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
- Support vehicle and non-vehicle counting
- Blocklist and allowlist: up to 10,000 records
- LPR Countries/Regions:
- 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
- Accuracy (Under recommended installation and lighting conditions):
- License plate recognition rate ≥98%
- Capture rate ≥99%
- Driving direction accuracy rate ≥98%
- Vehicle Capture Speed:
- Front installation in checkpoint scenario: up to 120 km/h
- Side installation: up to 80 km/h
- Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Multi-Target-Type Detection
- Supports simultaneous detection and capture of human body, face and vehicle,
- Gets 7 face features, 14 human body features and 8 vehicle features
- Perimeter ProtectionLine crossing detection, region entrance detection, intrusion detection, region exiting detection
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking 3.0
- Smart LinkageManual tracking, auto tracking, tracking takeover, linked tracking capture
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- General
- Power
- 36 VDC± 25%, max. 90 W (Max. 62 W, including max. 15 W for IR and max. 8 W for heater)
- PoE 802.3bt, type4, class8, max. 90W (Max. 62 W, including max. 15 W for IR and max. 8 W for heater)
- General Functionmirror,password protection
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
- WiperYes
- DemistYes
- MaterialADC12
- DimensionØ290 mm × 453.2 mm (Ø11.42″ × 17.84″)
- WeightApprox. 10.5 kg ( 23.15 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
- EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
- Anti-Corrosion ProtectionNo
