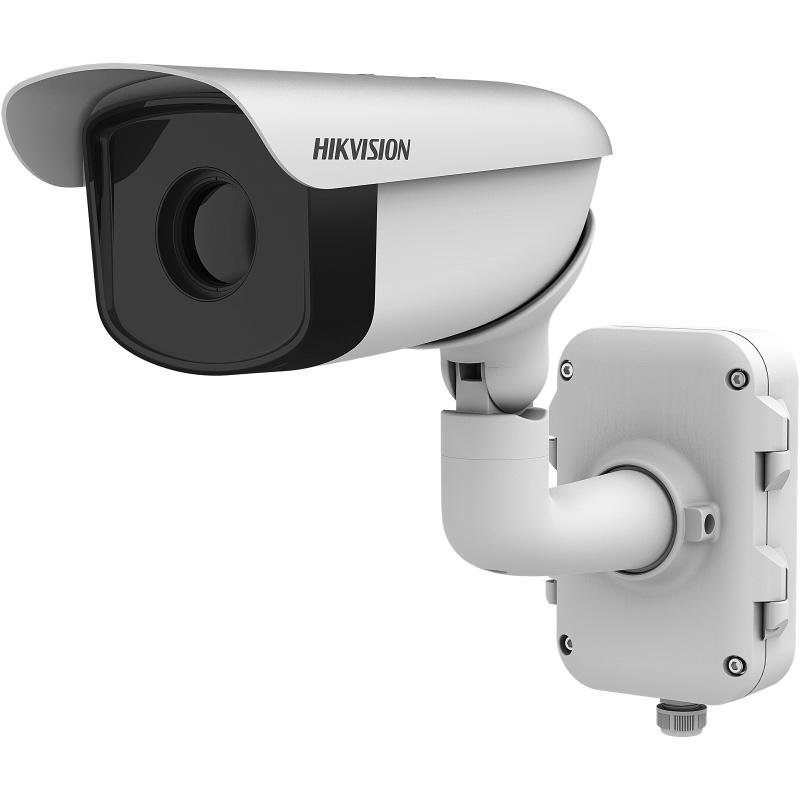

DS-2TD2367-75/PY
Thermal Network Bullet Camera
- 640 x 512 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25 °C, F# = 1.0)
- Perimeter protection functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Temperature exception alarm
- Fire detection algorithm
- High quality detector with 10 years guarantee
Description
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution640 × 512
- Pixel Interval17 μm
- Response Waveband8 μm to 14 μm
- NETD< 35 mk (25 °C, F# = 1.0)
- Focal Length75mm
- IFOV0.23 mrad
- Field of View8.3° × 6.6° (H × V)
- Min. Focusing Distance110 m
- ApertureF 1.0
- Digital Zoom×2, ×4, ×8
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature AccuracyMax (±8 °C, ±8 %)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable.
- Video and Audio
- Main Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
- Sub-stream50 Hz: 25 fps (704 × 576, 640 × 512,352 × 288)
- Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
- Video Compression
- Main Stream: H.265/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE SRTP, SFTP
- APIISAPI, HIKVISION SDK, open network video interface
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
- Simultaneous Live ViewUp to 20 channels
- ClientiVMS-4200, Hik-Connect
- Web BrowserIE 11, Chrome 41-44, Firefox 30-51
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input
- 1, 3.5 mm Mic in/Line in interface
- Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
- Communication Interface
- 1, RJ45 10 M/100 M self-adaptive Ethernet interface
- 1, RS-485 interface
- 1, Single Mode Fiber interface; TX: 1310 nm; RX 1550 nm; Transmission Distance: 20 km; Transmission Speed: 100 M;
- General
- Web Client Language
- 32 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
- 24 VAC ± 25%, two-core terminal block
- PoE (802.3at, class 4)
- Power Consumption
- 18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W
- 9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W
- PoE (802.3at, class 4): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W
- Working Temperature/Humidity
- Temperature: – 40 °C to 65 °C (- 40 °F to 149 °F)
- Humidity: 90% or less
- Protection Level
- IP67 Standard
- TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions535mm × 400mm × 171mm (21.06″ × 15.75″ × 6.73″)
- Approx. 6.40 kg (14.11 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans525 m
- VCA Range for Vehicles1575 m
Reviews (0)
Additional Information
Related products

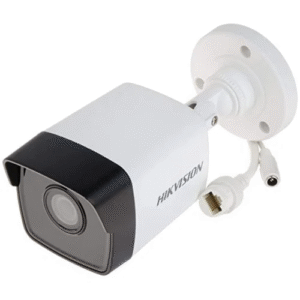

DS-2CD1023G0-IUF
2 MP Build-in Mic Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to DWDR technology
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- Support up to 256 GB SD card storage
- Built-in microphone for real-time audio security

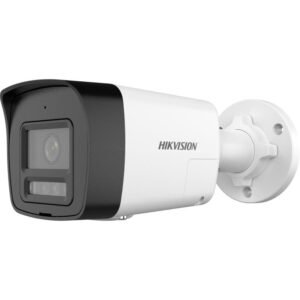

DS-2CD1043G2-LIUF/SL
4 MP Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)

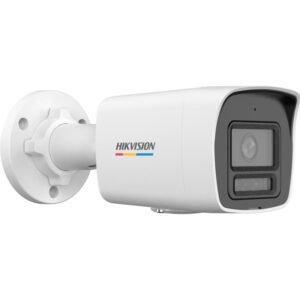

DS-2CD1067G2H-LIU(F)
6 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
DS-2CD1143G2-LIU(F)
4 MP Smart Hybrid Light Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67) and vandal resistant (IK08)
DS-2CD1321G2-LIU(F)
2 MP Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 2 MP resolution
- Support Human Detection
- Efficient H.265+ compression technology
- Smart Hybrid Light: advanced technology with long range coverage
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)

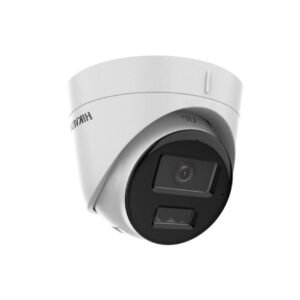

DS-2CD1323G2-LIU(F)
2 MP Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 2 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67)

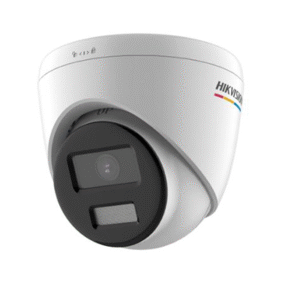

DS-2CD1327G2H-LIU(F)
