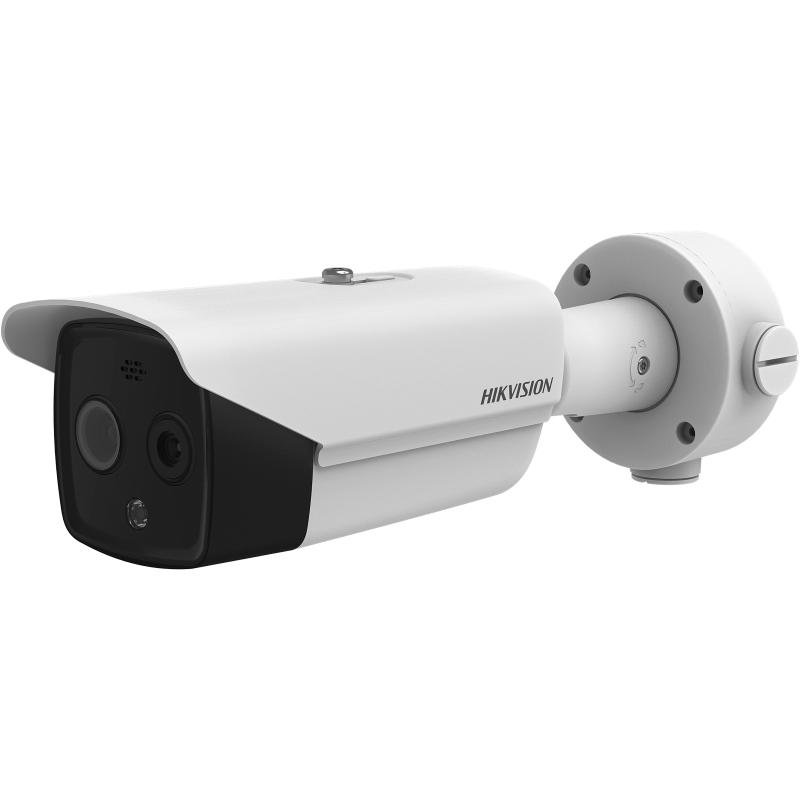

DS-2TD2617T-6/PA
Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera
- 160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
- High accuracy temperature exception alarm, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Fire detection algorithm
Description
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution160 × 120
- Pixel Pitch17 μm
- Spectral Range8 μm to 14 μm
- NETD< 40 mK (@ 25°C, F#=1.1)
- Focal Length6.2 mm
- IFOV2.74 mrad
- Field of View25° × 18.7° (H × V)
- Min. Focusing Distance0.6 m
- ApertureF 1.1
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/2.7″ Progressive Scan CMOS
- Resolution2688 × 1520
- Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
- Shutter Speed1s to 1/100,000s
- Focal Length8 mm
- Field of View39.42° × 22.14° (H × V)
- Aperture (Range)F1.6
- WDR120 dB
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR DistanceUp to 15 m
- IR Intensity and AngleAutomatically adjusted
- Audible and Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- Audio alarm
- Yes, for three types of audible alarm (VCA, Temperature, and Smoking Detection)
- 3 preset voice alerts (one for each)
- 6 importable user-defined voice alerts (6 options shared in the three types)
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 550°C (-4°F to 1022°F);
- Temperature AccuracyMax (±2°C, ±2 %)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable.
- Video and Audio
- Main Stream
- Thermal:
- 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
- Optical:
- 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-stream
- Thermal:
- 25 fps (704 × 576, 352 × 288, 320 × 240)
- Optical:
- 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)
- 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
- Video Compression
- Main Stream: H.265/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- API ISAPI, HIKVISION SDK, third-party management platform,
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
- Live view (plug-in allowed) : Internet Explorer 11
- Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
- Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Input1, alarm input (0-5 VDC)
- Alarm Output1, alarm output (alarm response actions configurable)
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input
- 1, 3.5 mm Mic in/Line in interface
- Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
- Communication Interface
- 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
- 1, RS-485 interface (half duplex)
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
- 12 VDC ± 25%, φ 5.5 mm coaxial power plug
- PoE (802.3af, class 3)
- Power Consumption
- 12 VDC ± 25%: 0.5 A, Max 6 W
- PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
- Working Temperature/Humidity
- Temperature: -40°C to 65°C (-40°F to 149°F)
- Humidity: 95% or less
- Protection Level
- IP66 Standard
- TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions358.3 mm × 113.5 mm × 115.2 mm (14.10″ × 4.47″ × 4.53″)
- 1.76 kg (3.88 lb)
