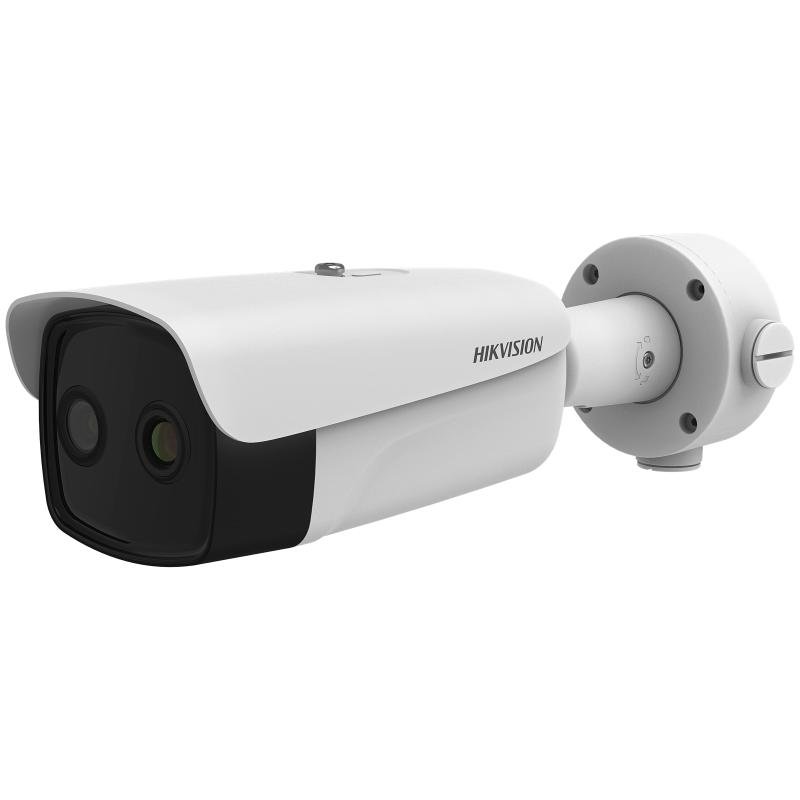

DS-2TD2637T-7/P
Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera
- 384 × 288 resolution, 17 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Fire detection algorithm
- High quality detector with 10 years guarantee
Description
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 × 288
- Pixel Interval17 μm
- Response Waveband8 μm to 14 μm
- NETD≤ 35 mk (25 °C, F# = 1.0)
- Focal Length6.5 mm
- IFOV2.62 mrad
- Field of View60° × 44.1° (H × V)
- Min. Focusing Distance0.6 m
- ApertureF 1.0
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/2.7″ Progressive Scan CMOS
- Resolution2688 × 1520
- Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
- Shutter Speed1 s to 1/100,000 s
- Focal Length4 mm
- Field of View84.4° × 51.1° (H × V)
- Aperture (Range)F 1.6
- WDR120 dB
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR DistanceUp to 40 m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
- Temperature Range– 20 °C to 550 °C (- 4 °F to 1022 °F)
- Temperature AccuracyMax (± 2 °C, ±2 %)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable.
- Video and Audio
- Main Stream
- Optical channel
- 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Thermal channel
- 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
- Sub-stream
- Optical channel
- 50 HZ: 25 fps (704 × 576, 352 × 288, 176 × 144)
- 60 HZ: 30 fps (704 × 480, 352 × 240, 176 × 120)
- Thermal channel
- 25 fps (704 × 576, 352 × 288, 320 × 240)
- Video Compression
- Main Stream: H.265/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE SRTP, SFTP
- APIISAPI, HIKVISION SDK, third-party management platform, (Profile S, Profile G, Profile T)
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
- Simultaneous Live ViewUp to 20 channels
- ClientiVMS-4200, Hik-Connect
- Web Browser
- Live view (plug-in allowed) : Internet Explorer 11
- Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
- Local service : Chrome 57.0+, Firefox 52.0 +
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- Interface
- Alarm Input2-ch inputs (0-5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input
- 1, 3.5 mm Mic in/Line in interface
- Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
- Communication Interface
- 1, RJ45 10 M/100 M self-adaptive Ethernet interface
- 1, RS-485 interface
- General
- Web Client Language
- 32 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power
- 24 VAC ± 25%, 12 VDC ± 25%, 24VDC, two-core terminal block
- PoE (802.3af, class 3)
- Power Consumption
- 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W
- 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W
- 24VDC: 0.375A, max 9W
- PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
- Working Temperature/Humidity
- Temperature: – 40 °C to 65 °C (- 40 °F to 149 °F)
- Humidity: 95% or less
- Protection Level
- IP66 Standard
- TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81″ × 4.68″ × 4.65″)
- Approx. 1.82 kg (4.01 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans49 m
- VCA Range for Vehicles147 m
