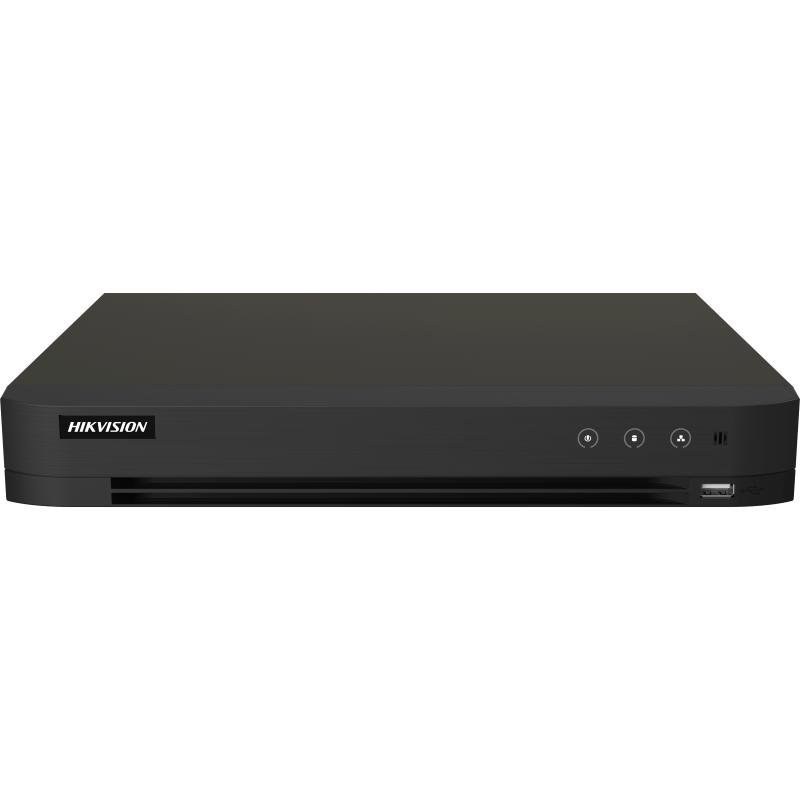

DS-7204HGHI-M1/T
4-ch 1080p Lite 1U H.265 DVR
- Support all channels motion detection technology
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/CVI/AHD/IP/CVBS video inputs
- Audio over coaxial cable
- Support all channels HDTVI two-way audio technology
- Up to 5-ch IP camera inputs
Description
- Motion Detection 2.0
- Human/Vehicle Analysis
- Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
- Quick search by object or event type is supported;
- Video and Audio
- IP Video Input
- 1-ch (up to 5-ch)
- Up to 2MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
- 4-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
- 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output
- 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS InputSupport
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- Synchronous playback4-ch
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input
- 1-ch RCA (2.0 Vp-p, 1 KΩ)
- 4-ch via coaxial cable
- Two-Way AudioReuse the first audio input
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
- For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
- Main stream:
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
- For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream:
- 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 4 Mbps
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth64 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
- Remote Connection32
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 4 TB capacity for each disk
- USB InterfaceRear panel: 2 × USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 10 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)263 × 220 × 48 mm (10.3 × 8.7 × 1.9 inch)
- ≤ 0.8 kg (without HDD, 1.8 lb.)
Reviews (0)
Additional Information
Related products
DS-7108HGHI-M1

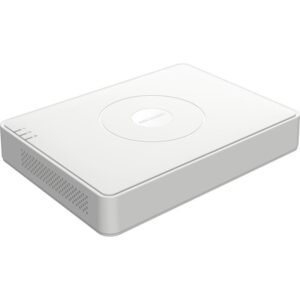

8-ch 720p Mini 1U H.265 DVR
