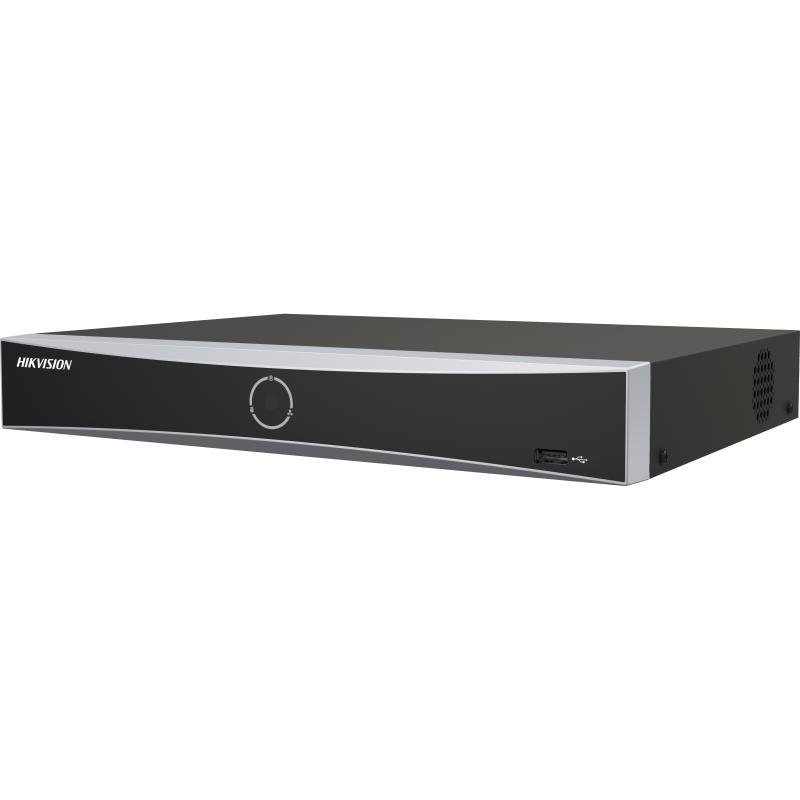

DS-7608NXI-I2/S
8-ch 1U AcuSense 4K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 4-ch facial recognition for video stream
- Up to 8-ch facial recognition for face picture
- Up to 8-ch IP camera inputs
- Up to 32-ch 1080p decoding capability
- Up to 8-ch IP speakers can be connected
Description
- Intelligent Analytics
- AI by NVR Facial recognition, perimeter protection, motion detection 2.0
- AI by Camera AcuSearch,Facial recognition, perimeter protection, video structuralization, motion detection 2.0, ANPR, people counting, VCA
- Engine 1, engine mode is adjustable
- Facial Recognition
- Face Picture Library Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
- Face Picture Comparison 8-ch
- Facial Detection and Analytics Face picture comparison, human face capture, face picture search
- Facial Detection and Analytics Performance 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Motion Detection 2.0
- By Camera All channels
- By NVR All channels for Hikvision cameras
- Perimeter Protection
- By Camera All channels
- By NVR
- 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
- Up to 12 rules in total
- ANPR
- By Camera All channels
- Vehicle Attributes Plate number, license plate color, license plate type
- Plate Attributes Vehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input 8-ch
- Incoming Bandwidth 80 Mbps
- Outgoing Bandwidth 256 Mbps
- HDMI Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
- VGA Output 1920 × 1080/60 Hz,
- Video Output Mode HDMI/VGA independent output
- CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding Format H.265+/H.265/H.264+/H.264
- Recording Resolution
- 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
- Synchronous playback 8-ch
- Live View Window Division 1/2/4/6/8/9
- Aux Port Window Division 1/2/4/6/8/9
- Decoding Capability
- Enable AI by NVR: 20-ch@1080p (30 fps)
- Disable AI by NVR: 32-ch@1080p (30 fps)
- Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Dual-Stream Recording Support
- Stream Type Video, Video & Audio
- Network
- Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Remote Connection 128
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- API ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Camera Access Protocol ONVIF(Version 2.5), RTSP
- Auxiliary Interface
- SATA 2 SATA interfaces
- Capacity Up to 16 TB capacity for each disk
- Alarm In/Out 4/1
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- General
- GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
- Power Supply 100 to 240 VAC, 50 to 60 Hz
- Consumption ≤ 30 W (without HDD)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Chassis 1U chassis
- Dimension (W × D × H) 385 × 317 × 52 mm ( 15.2″× 12.5″ × 2.0″)
- ≤ 2.5 kg (without HDD, 5.5 lb.)
- Certification
- Obtained Certification CE, CB, REACH, WEEE, UKCA, LOA
- CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
