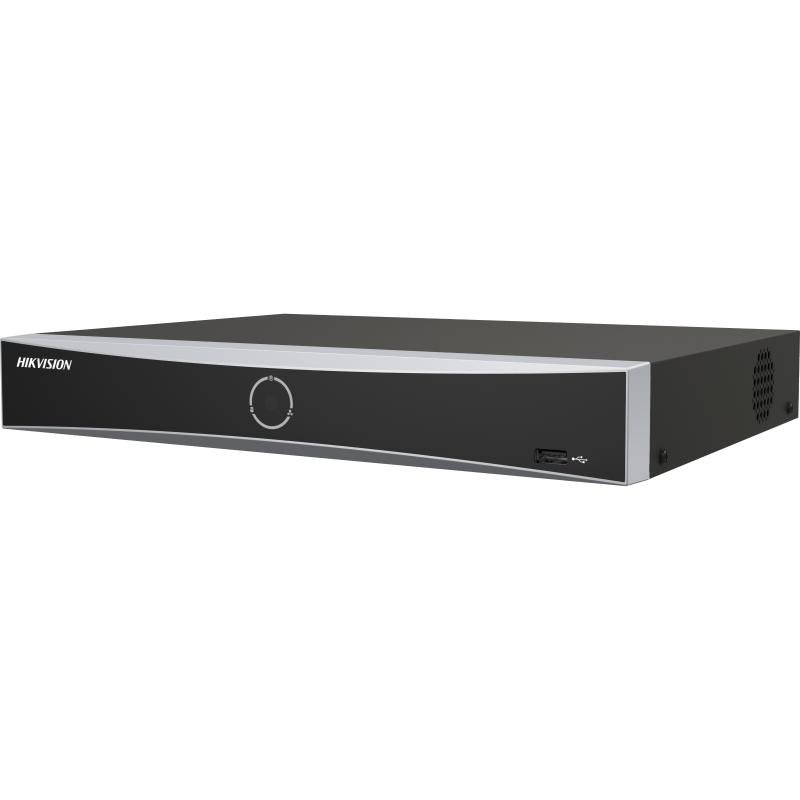

DS-7608NXI-K2(D)
8-ch 1U K Series AcuSense 4K NVR
- Up to 8-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
- Up to 80 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Description
- Intelligent Analytics
- AI by DeviceFacial recognition, perimeter protection, motion detection 2.0
- AI by CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection and Analytics Performance1-ch, 8 MP
- Face Picture Comparison4-ch
- Motion Detection 2.0
- By CameraAll channels
- Perimeter Protection
- By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
- Video and Audio
- IP Video Input8-ch
- Incoming Bandwidth80 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA independent output
- CVBS OutputN/A
- Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Two-Way Audio1-ch, RCA (Linear, 1 KΩ)
- Decoding
- Decoding FormatH.265/H.265+/H.264+/H.264
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback8-ch
- Decoding Capability
- AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
- AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
- Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps)
- Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
- Network
- Remote Connection128
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 16 TB capacity for each HDD
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out4/1
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply12 VDC, 3.3 A
- Consumption≤ 15 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
- ≤ 1 kg (without HDD, 2.2 lb.)
- Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
