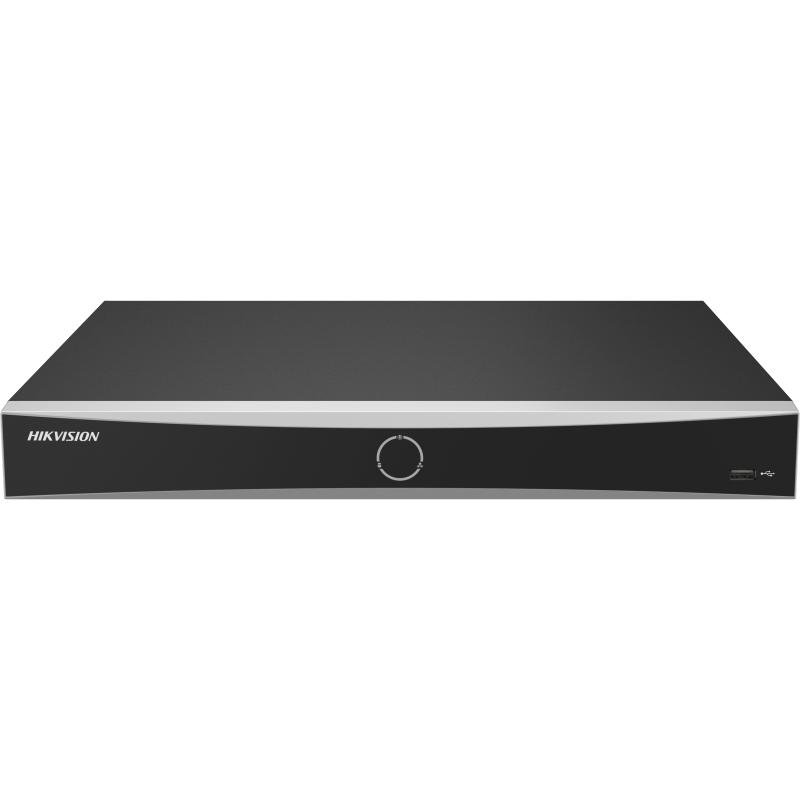

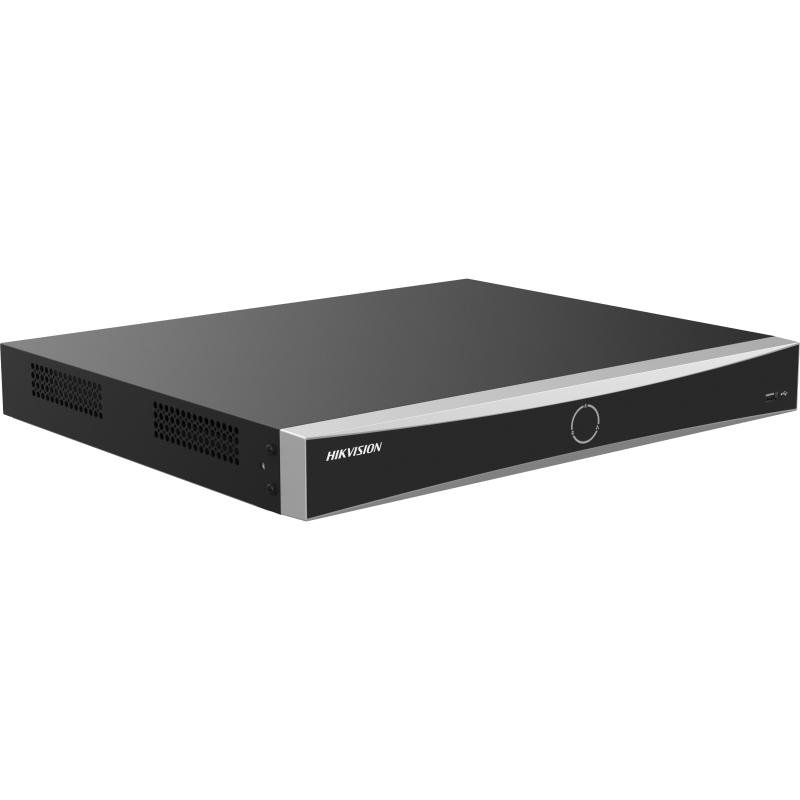

DS-7632NXI-K2(E)
32-ch 1U K Series AcuSense 4K NVR
- Adopt Hikvision AcuSense technology to minimize manual effort and security costs
- Efficient playback with AcuSearch technology
- Accurate perimeter protection effectively reduces false alarms
- Automatic cameras connection and configuration
- Up to 32-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 3-ch@12 MP or 5-ch@8 MP or 10-ch@4 MP or 20-ch@1080p decoding capacity
- Up to 256 Mbps incoming bandwidth
Description
- Intelligent Analytics
- AI by NVRFacial recognition, perimeter protection, motion detection 2.0, AcuSearch
- AI by CameraFacial recognition, perimeter protection, motion detection2.0, ANPR
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Facial Detection and Analytics Performance
- Up to 4 MP: 2-ch;
- 8 MP to 5 MP: 1-ch
- Face Picture Comparison8-ch
- Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB)
- AcuSearch
- By Camera
- All channels
- *：The camera should enable AcuSearch function
- Motion Detection 2.0
- By NVRAll channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
- Perimeter Protection
- By NVR
- Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm.
- Up to 4 MP : 2-ch; 5 MP to 8 MP : 1-ch
- By CameraAll channels
- Video and Audio
- IP Video Input32-ch
- IP Speaker Input4-ch
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth160 Mbps
- Video Output ModeHDMI/VGA independent output
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output 1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF
- Synchronous playback16-ch
- Decoding Capability
- AI on: 16-ch@1080p (30 fps)
- AI off: 20-ch@1080p (30 fps)
- Stream TypeVideo, Video and Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
- Network
- Remote Connection128
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE 11, Chrome 91, Firefox 88, Safari 12, Edge 91,or above version
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface;2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 16 TB capacity for each HDD
- Alarm In/Out4/1
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Hebrew, Ukrainian, Indonesian
- FanSupports automatic speed control
- Power Supply12 VDC, 3.33 A
- Consumption≤ 15 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)384 mm × 317 mm × 52 mm (15.12 × 12.48 × 2.03 inch)
- ≤ 1.8 kg (without HDD, 4.0 lb.)
- Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained CertificationCE,CB,REACH,WEEE,UKCA,RCM,IC
