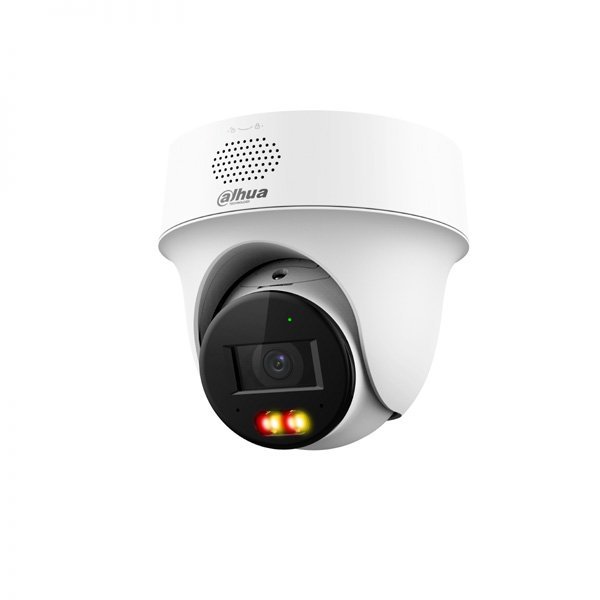

IPC-PT1239H-PV

Camera

Image Sensor

1/2.8″ CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on);

Illumination Distance

30 m (98.43 ft) (IR + warm light-only warm light is enabled) 30 m (98.43 ft) (IR + warm light-only IR is enabled)

Illuminator On/Off Control

Manual; auto; off

Illuminator Number

2 (IR + warm light)

Lens

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H:103°;V:55°;D:123°
3.6 mm: H: 86°; V: 46°; D: 103°

Close Focus Distance

2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.2 m (3.93 ft)

Iris Control

Fixed

DORI Distance

PTZ

Pan/Tilt Range

Pan: 0° to 345°; Tilt: 0° to +90°

Manual Control Speed

Pan: 0.1°–37.66°/s; Tilt: 0.1°–32.61°/s

Preset Speed

Pan: 0.1°–37.19°/s; Tilt: 0.1°–30.82°/s

Preset

50

Power-off Memory

Yes

Idle Motion

Preset;home position(only supports setting on DMSS)

PTZ Locked

YES

Smart Event

IVS

Yes

Human Detection

Yes

Vehicle Detection

Yes

Active Deterrence

Light Warning

Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low

Sound Warning

supports importing custom voice content;Sound can be set from 0%–100%. Play times can be set from 1-10.

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability

2 streams

Resolution

1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360); QVGA (320 × 240)

Video Frame Rate

Main stream: 1080p/720p/640 × 360@(1–25/30 fps)
Sub stream 1: 640 × 360/QVGA@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 16 kbps–8,192 kbps
H265: 6 kbps–6,400 kbps

Day/Night

Auto (ICR); Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic

Image Rotation

180°

Privacy Masking

4 area

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM; G.711A; G.711Mu; G.726

Built-in MIC

Yes

Built-in Speaker

Yes

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter

Interoperability

CGI;SDK;ONVIF (Profile S & Profile T)

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player

Mobile Client

iOS;Android

Function

Abnormal Sound Alarm

Yes

Certification

Certifications

EN 62368-1;EN 55032;EN 61000-3-3;EN IEC 61000-3-2;EN 50130-4;EN 55035;

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; preset; recording; audio; sending email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection;

Power

Power Supply

12 VDC, 1.0 A ± 10%
PoE (802.3af)

Power Consumption

12 VDC, 1.0 A ± 10%:
Basic: 3 W;
Max: 11 W (illuminator+speaker+PTZ operation)
PoE（802.3af）
Basic: 4 W; Max: 12 W (illuminator+speaker+PTZ operation)

Power Adapter

Optional

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

≤95%

Protection

IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

128.4 mm × Φ127.3 mm (5.06″ × Φ5.01″)

Net Weight

0.41 kg (0.9 lb)

Gross Weight

0.5 kg (1.1 lb)

Filter

Remarks

* The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model
