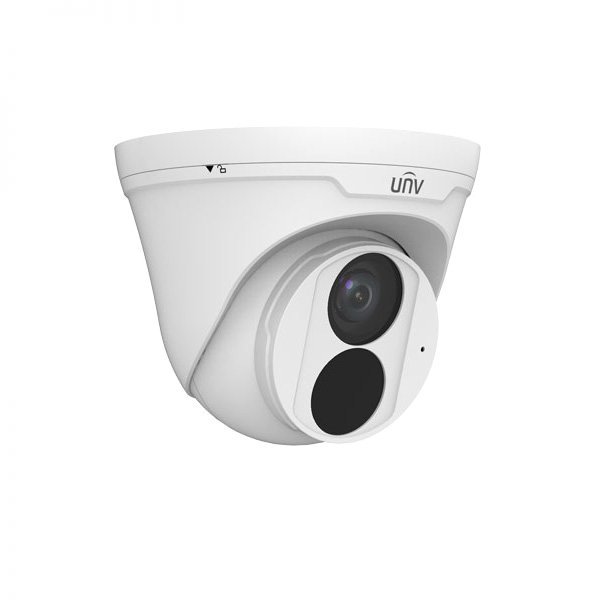

IPC3614LB-ADF28K-K - Image 1
Click to enlarge
UAC-B142-ACF28(40)LM-DL
UAC-B142-ACF28(40)LM-DL
Back to products
Mercusys MR60X
Mercusys MR60X

IPC3614LB-ADF28K-K

4MP WDR Turret Network Camera
• High quality image with 4MP, 1/3.0″ CMOS sensor
• 4MP (2560 Ă— 1440)@25/20 fps; 3MP (2304 Ă— 1296)@30/25 fps; 2MP (1920 Ă— 1080)@30/25 fps; 720P (1280 Ă— 720)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• 120 dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 30 m (98 ft) IR distance
• Built in Mic
• Supports up to 512 GB Micro SD Card
• IP67 protection
• Support PoE power supply
• 3 Axis
Add to wishlist
Category: Tags: , , , , , , , ,
Description
IPC3614LB-ADF28K-K IPC3614LB-ADF40K-K
Camera
Max Resolution 4 MP
Sensor 1/3.0″ CMOS
Min. Illumination Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N >52 dB
WDR 120 dB
Lens
Focal Length 2.8 mm 4.0 mm
Iris F2.0
Field of View (H) 101.5° 84.1°
Field of View (V) 55.6° 45.1°
Field of View (D) 111.6° 89.5°
Iris Type Fixed
DORI
DORI Distance (Lens) 2.8 mm 4 mm
DORI Distance (Detect) 63.0 m (206.7 ft.) 90.0 m (295.3 ft.)
DORI Distance (Observe) 25.2 m (82.7 ft.) 36.0 m (118.1 ft.)
DORI Distance (Recognize) 12.6 m (41.3 ft.) 18.0 m (59.1 ft.)
DORI Distance (Identify) 6.3 m (20.7 ft.) 9.0 m (29.5 ft.)
Illuminator
Supplemental Light IR
Illumination Distance (IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4 MP (2560 Ă— 1440), max. 25 fps; 3 MP (2304 Ă— 1296), max. 30 fps; 1080P (1920 Ă— 1080), max. 30 fps; 720P (1280 Ă— 720), max. 30 fps;
Sub Stream: D1 (720 Ă— 576), max. 30 fps; 640 Ă— 360, max. 30 fps; 2CIF (704 Ă— 288), max. 30 fps; CIF (352 Ă— 288), max. 30 fps
Video Bit Rate 128 Kbps to 6144 Kbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Support
U-code Support
Video Stream Dual streams
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC Support
Dewarping N/A
BLC Support
Defog Digital defog
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8 kHz
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP, IPv6
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
Client EZStation, APP
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Interface
Audio I/O N/A
Serial Port N/A
Alarm I/O N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 Ă— RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
Protection IP67 (IEC 60529)
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
General
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 3.8 W
Power Interface Ă˜5.5 mm coaxial power plug
Dimensions Ă˜118 mm Ă— 96 mm (Ă˜4.6″ Ă— 3.8″) (Ă˜ Ă— H)
Material Graphene + Plastic
Weight 0.27 kg (0.60 lb)
Storage Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Web Client Language 4 Languages: English, Russian, Spanish, Vietnamese
Reset Button N/A
