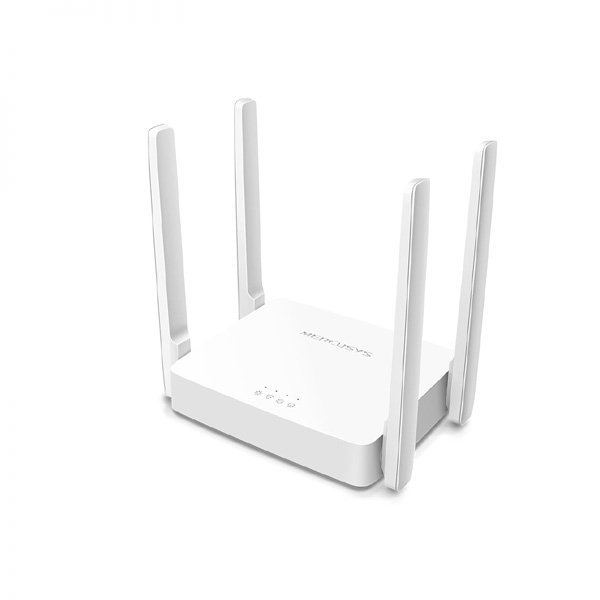

MERCUSYS AC10
AC1200 Wireless Dual Band Router
- High-Speed Wi-Fi – Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band)
- 4 High-Gain External Antennas – Receive strong Wi-Fi signals in every corner of your home
- Easy Installation – Set up in minutes guided by the MERCUSYS app or an intuitive web UI
- Active Parental Controls – Protect your family by setting appropriate access policies for responsible, safe internet use
- Multi-Mode — Access Point Mode, Range Extender Mode, and Router Mode supported to satisfy all application scenarios
- IPTV and IPv6 Supported
Description
- Wireless Standards
- IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
- Frequency
- 2.4 GHz, 5 GHz
- WiFi Speeds
- Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
- Reception Sensitivity
- 11g 6Mbps: -96dBm11g 54Mbps: -78dBm11n HT40 MCS7: -74dBm11n HT20 MCS7: -71dBm11a 6Mbps: -97dBm11a 54Mbps: -79dBm11ac VHT20 MCS8: -74dBm11ac VHT40 MCS9: -70dBm11ac VHT80 MCS9: -65dBm
- Transmission Power
- 2.4 GHz < 20dBm (EIRP)5 GHz < 23dBm (EIRP)
- Wireless Security
- WEPWPA / WPA2-PersonalWPA2 / WPA3-Personal
- Wireless Functions
- Enable/Disable Wireless Radio, WMM
- Hardware
- Dimensions
- 4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)
- Interfaces
- 1× 10/100 Mbps WAN Port2× 10/100 Mbps LAN Ports
- Button
- Reset/WPS Button
- External Power Supply
- 9V/0.85A
- Antenna Type
- 4× 5 dBi Fixed Omni-Directional Antennas
- Software
- Operation Mode
- Router Mode, Access Point Mode
- WAN Type
- Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management
- Access Control, Local Management, Remote Management
- NAT Forwarding
- Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall Security
- SPI Firewall, IP and MAC Address Binding
- Guest Network
- 2.4 GHz Guest Network, 5 GHz Guest Network
- DHCP
- Server, DHCP Client List
- Others
- Package Contents
- AC1200 Wireless Dual Band Router AC10Power AdapterQuick Installation GuideRJ45 Ethernet Cable
- Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)Operating Humidity: 10%~90% Non-CondensingStorage Humidity: 5%~90% Non-Condensing
