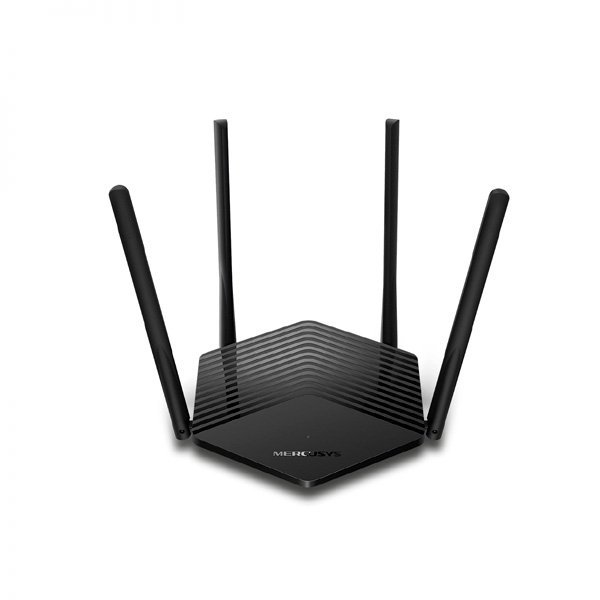

Mercusys MR60X

AX1500 WiFi 6 Router
  • Upgrade Your Network with Wi-Fi 6 – MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.
  • Faster 1.5 Gbps Speeds – Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
  • Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
  • Broader, Stronger Coverage – 4Ă— multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
  • Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
  • Overall Security Protection – The latest WPA3 provides improved WiFi security
  • Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
  • Smart Connect– Intelligently chooses the best available band for each device
Description
Wireless Standards


Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

Signal Rate
1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
Reception Sensitivity
11g 6Mbps: -97dBm11g 54Mbps: -79dBm11n HT40 MCS7:-74dBm11n HT20 MCS7:-78dBm11a 6Mbps:-94dBm11a 54Mbps:-78dBm11ac VHT20 MCS8:-74dBm11ac VHT40 MCS8:-70dBm11ac VHT80 MCS8:-65dBm
Wireless Security
WPA / WPA2-PersonalWPA2 / WPA3-Personal
Wireless Functions
Enable/Disable Wireless Radio, WMM
Software
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access ControlLocal ManagementRemote Management
DHCP
Server, DHCP Client List
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security


SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network
Hardware
Dimensions (W X D X H)
6.9 Ă— 6.2 Ă— 1.8 in (175.6 Ă— 157.2 Ă— 45 mm)
Interfaces
1Ă— Gigabit WAN Port + 2Ă— Gigabit LAN Ports
Button
Reset/WPS Button
Antenna Type


4Ă— 5 dBi Fixed Omni-Directional Antennas

Others
Package Contents
• AX1500 Wi-Fi 6 Router MR60X• Power Adapter• Quick Installation Guide• RJ45 Ethernet Cable
Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)• Operating Humidity: 10%~90% Non-Condensing• Storage Humidity: 5%~90% Non-Condensing
