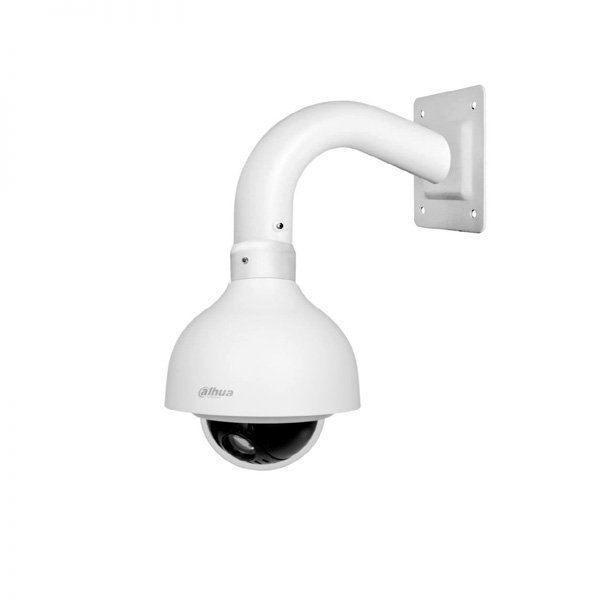

SD40216DB-HC

Camera

Image Sensor

1/2.8″ CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

256 MB

Electronic Shutter Speed

1/3 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE)

Lens

Focal Length

5 mm–80 mm

Max. Aperture

F1.6–F2.8

Field of View

H: 59.6°–5.4°; V: 34.6°–3.0°; D: 67.3°–6.2°

Optical Zoom

16x

Focus Control

Auto; semi-auto; manual

Close Focus Distance

1 m–1.5 m (3.28 ft–4.92 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

1103.4 m (3620.24 ft)

435.9 m (1429.99 ft)

220.7 m

(724.05 ft)

110.3 m (362.02 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless;
Tilt: 0° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–300°/s;
Tilt: 0.1°–200°/s

Preset Speed

Pan: 0.1°–300°/s;
Tilt: 0.1°–200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Video

Resolution

1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480)

Video Frame Rate

1080p (25/30 fps); 720p (25/30/50/60 fps)

Day/Night

Yes

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Defog

Electronic

Digital Zoom

16x

Image Rotation

180°

Privacy Masking

Yes

S/N Ratio

≥ 50 dB

Function

CVI Product Output Mode

TVI; CVI; CVBS; AHD (CVBS is only used for debugging)

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Analog Output

1 channel (CVBS/CVI output, BNC)

RS-485

1 (baud rate range: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Alarm Input

2 (on-off value input: 0–5 VDC)

Alarm Output

1

Alarm Linkage

Scan; preset; tour; pattern; alarm digital output

Alarm Event

Alarm input

Power

Power Supply

12 VDC, 3 A ± 10%

Power Consumption

Basic: 8 W
Max: 12 W (PTZ)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Protection

IK10; TVS 6000 V lightning proof;IP66; surge protection; voltage transient protection

Structure

Product Dimensions

233.9 mm × Φ186.2 mm (9.21″ × Φ7.33″)

Net Weight

2.3 kg (5.07 lb)

Gross Weight

4.3 kg (9.48 lb)
