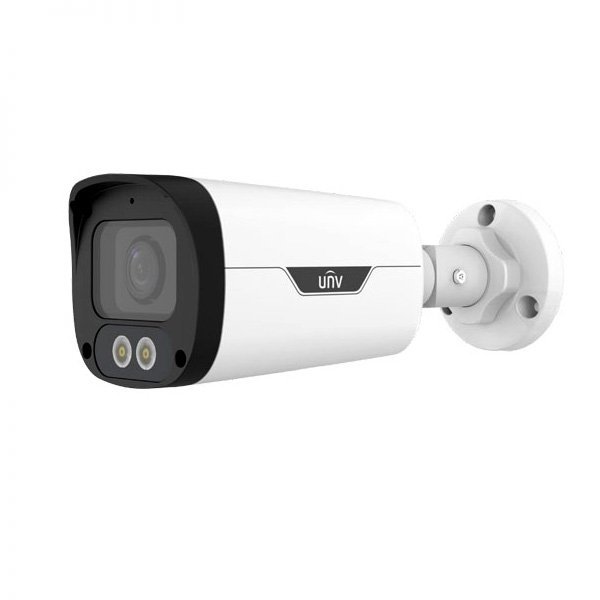

UAC-B134-ADF28(40)MS-W
4MP ColorHunter Fixed Warm Light Bullet Analog Camera
• High quality image with 4MP, F1.0 large aperture lens
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• 120dB true WDR technology enables clear image in strong light scene
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• 120dB true WDR technology enables clear image in strong light scene
Description
| UAC-B134-ADF28MS-W | UAC-B134-ADF40MS-W | |||||||
| Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor Size | 1/1.8″ CMOS | |||||||
| Min. Illumination | 0.0005 lux (F1.0, AGC ON) 0 lux (white light on) |
|||||||
| Lens | ||||||||
| Focus | 2.8 mm | 4.0 mm | ||||||
| Lens Mount | M16 | |||||||
| Angle of View (H) | 105.9° | 89.5° | ||||||
| Angle of View (V) | 57.1° | 48.0° | ||||||
| Angle of View (D) | 125.0° | 105.9° | ||||||
| Illuminator | ||||||||
| Illuminator Number | Two white-light illuminators | |||||||
| Illumination Distance | 40m | |||||||
| Lifetime | ≥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 4MP: 2560 (H) Ă— 1440 (V) 1080P: 1920 (H) Ă— 1080 (V) |
|||||||
| Frame Rate | CVI: 4MP@25fps (default), 4MP@30fps,1080P@25fps, 1080P@30fps AHD: 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps TVI: 4MP@15fps, 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps CVBS: PAL, NTSC |
|||||||
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s |
|||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, WDR | |||||||
| Day/Night | 24/7 color images | |||||||
| Digital Noise Reduction | 2D/3D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | 120 dB WDR | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Digital Defog | N/A | |||||||
| Audio | ||||||||
| Built-in Mic | Support | |||||||
| Camera Audio | CVI: 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps | |||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) | |||||||
| Humidity | ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4kV for power&4kV for video output interfaces | |||||||
| General | ||||||||
| Power | DC 12 V ± 25% | |||||||
| Power Consumption | MAX 6.8W | |||||||
| Mount | Corner Mount&Pole Mount | |||||||
| Dimensions | 206mm*73mm*73mm (L*W*H) | |||||||
| Material | Graphene + Metal | |||||||
| Weight | 463g(1.02lb) | |||||||
