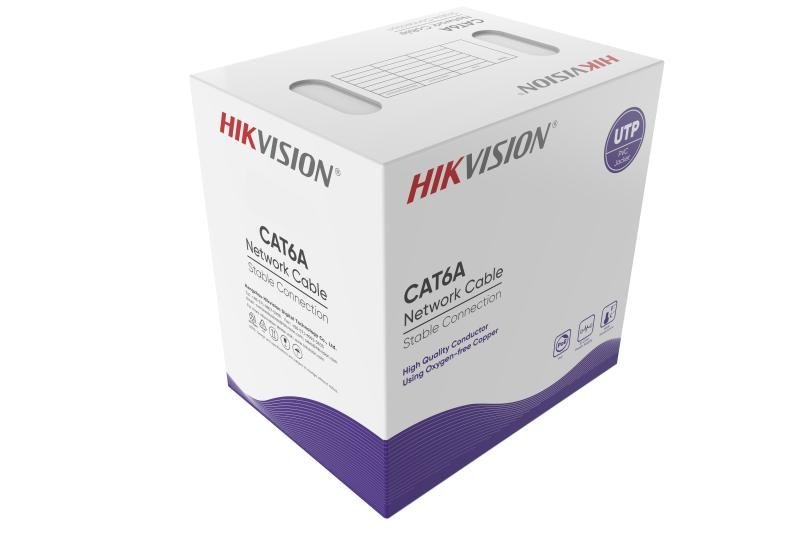

DS-1LN6AUUC0
Unshielded Cat6A, 0.56mm
- Stable electrical performance, compliant with ANSI/TIA-568.2-D, ISO/IEC11801.
- Supports Gigabit Ethernet (10GbaseT) standard，with bandwidth of 500MHz.
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57V/1A DC power (PoE).
- Compliant with RoHS 2.0.
Description
- Category
- Product CategoryCat.6A
- Reference standard
- Reference StandardISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0
- Fire resistance
- Fire resistanceCPR Fca
- Conductor
- Conductor MaterialSolid-Bare Copper (99.95%)
- Conductor Diameter0.56 ± 0.01 mm (23AWG)
- Insulation
- Insulation MaterialHDPE
- Insulation Diameter1.00 ± 0.05mm
- Rip-cord
- Rip-cordYes
- Jacket
- Jacket MaterialPVC
- Jacket thickness0.50 ± 0.05 mm
- Jacket Diameter6.2 ± 0.4 mm
- Jacket physical properties
- Tensile strength
Before aging: ≥ 13.5 Mpa
After aging: ≥ 12.5 Mpa
- Elongation
Before aging: ≥ 150%
After aging: ≥ 125%
- Cold bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
- General Specifications
- ColorGrey
- Length305 ± 1.5 m
- SeparatorYes
- Electrical Characteristics
- DC resistance≤ 9.38 Ω/100 m
- DC conductor resistance unbalance≤ 4.0%
- Operating voltage57 V
- Mechanical Specifications
- Aging period100°C × 24h × 7d
- Environmental Specifications
- Operating Temperature-20 °C to 70 °C
- Packaging and Weights
- Package dimension325mm (W) Ă— 245 mm (H) Ă— 333 mm (D)
- 13.5 ± 1kg
