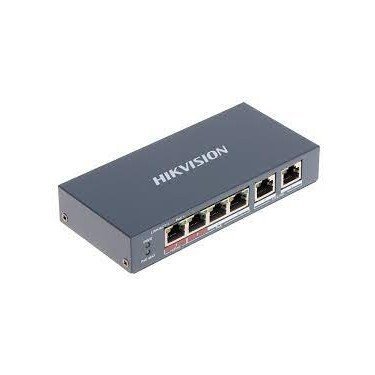

DS-3E0106HP-E
4 Port Fast Ethernet Unmanaged POE Switch
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Description
- General
- ShellMetal material, fan-free design
- Net Weight0.24 kg (0.53 lb)
- Gross Weight0.77 kg (1.70 lb)
- Dimensions (W × H × D)145 mm × 25.6 mm × 68.45 mm (5.7” × 1.0” × 2.7”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Max. Power Consumption65 W
- Power Consumption in Idle5 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- MAC Address Table2 K
- Switching Capacity1.20 Gbps
- Packet Forwarding Rate0.89 Mpps
- Internal Cache768 Kbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port
Hi-PoE: Port 1
PoE: Ports 2 to 4
- Max. Port Power
Port 1: 60 W
Ports 2 to 4: 30 W
- PoE Power Budget60 W
- Dialing Function
- Long Range
Ports 1 to 4: up to 300 m
Long range performance may vary depend on camera model or cable condition.
- Software Function
- VIP PortPorts 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
