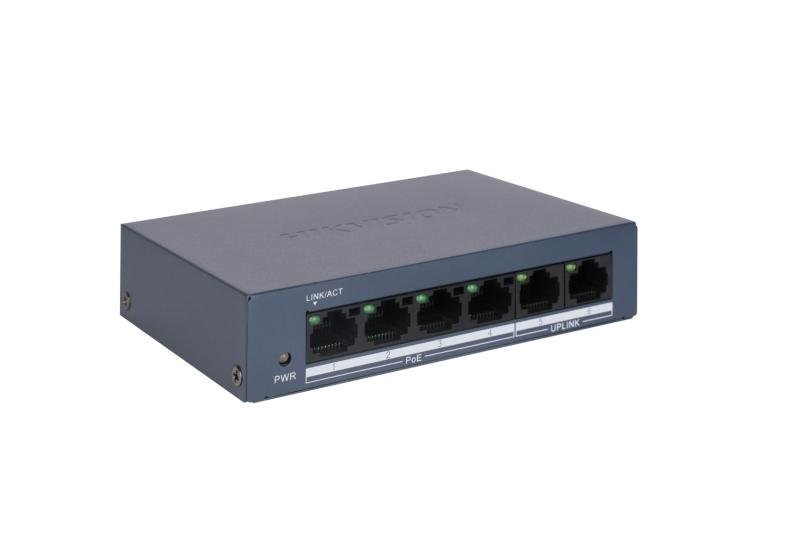

DS-3E0106MP-E/M
4 Port Fast Ethernet Unmanaged POE Switch
- 4 × 10/100 Mbps PoE RJ45 ports and 2 × 10/100 Mbps RJ45 ports
- Auto MDI/MDIX of ports
- Store-and-forward switching mode
- Auto MAC address learning and aging
- Intelligent cache optimization
Description
- General
- ShellMetal material, fan-free design
- Net Weight0.19 kg (0.42 lb)
- Gross Weight0.63 kg (1.39 lb)
- Dimensions (W × H × D)121.10 mm × 27.60 mm × 83.10 mm (4.77” × 1.09” × 3.27”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48VDC, 1.04A
- Max. Power Consumption50 W
- Power Consumption in Idle1.6 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection2 KV
- Network Parameters
- Ports4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- MAC Address Table2 K
- Switching Capacity1.2 Gbps
- Packet Forwarding Rate0.89 Mpps
- Internal Cache768 Kbits
- PoE Power Supply
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 4
- PoE Power Budget45 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
