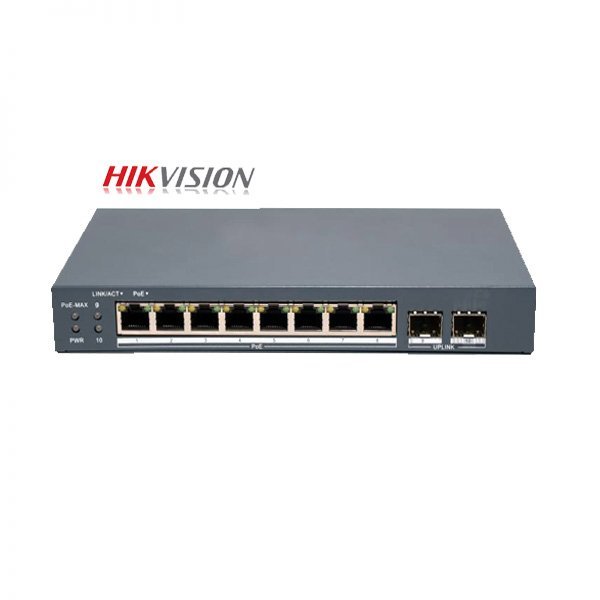

DS-3E1510P-EI/M-8P2F
8 Port Gigabit Smart POE Switch
- 8 × Gigabit PoE port,2 × Gigabit Fiber Optical port
- Total PoE Power Budget 80W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6KV Surge Protection
Description
- General
- ShellMetal material
- Net Weight0.54 kg (1.19 lb)
- Gross Weight1.08 kg (2.38 lb)
- Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57” × 1.09” × 4.27”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply54VDC, 1.6A
- Installation ModeDesk-Mounted,Wall-Mounted
- Max. Power Consumption86 W
- Power Consumption in Idle2.5 W
- Surge Protection6 KV
- Network Parameters
- Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- Internal Cache1.5 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget80 W
- Software Function
- Long Range
- Ports 1 to 8: up to 300 m.
- Long range performance may vary depend on camera model or cable condition.
- Port Isolation
- Ports 1 to 8: port isolation mode to improve network security
- Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
- Link Aggregation
- Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
- Support static link aggregation.
- Support 3 aggregation groups.
- Loop Prevention
- Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
- Support 802.1D STP.
- Suppport 802.1w RSTP.
- VLAN
- VLAN is used for network scale planning and network health improvement.
- Support 802.1Q.
- Configurable VLAN ID from 1-4094.
- Support Trunk, Access port mode.
- Support Max. 32 VLAN.
- HPP
- Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
- 1. Display the port rate.
- 2. Display the port bandwidth utilization rate.
- 3. Display the PoE power usage.
- 4. Display topology information.
- 5. Display the alarm status.
- 6. Restart ports and devices.
- 7. Enable port long-rage mode.
- 8. Remotely upgrade the device.
- System Maintenance
- Support device management via web.
- Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
- Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
- Support management via Hik-Central Pro.
- Support remote management via Hik-Partner Pro.
- Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
- Supports 802.1ab LLDP for peer device discovery.
- Support port mirroring for fault locating.
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryReach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
