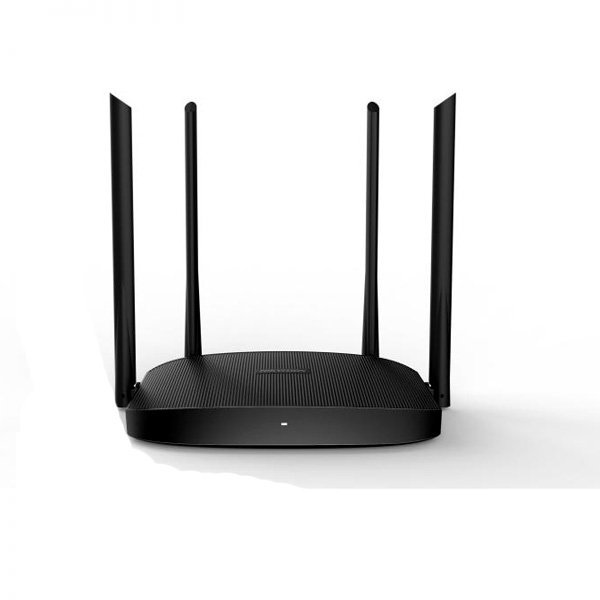

DS-3WR12GC
AC1200 Gigabit Port Wireless Router
- Four 5-dBi amplified antennas
- Beamforming optimizes signal
- Beamforming optimizes signal
- Dual band – Smart signal switching
- Dual band – Smart signal switching
- Broadband account synchronization
Description
- General
- Product Dimension (W × H × D)248.40 mm × 154.80 mm × 213.34 mm (9.78″× 6.09″× 8.40″)
- Package Dimension (W × H × D)306 mm × 290 mm × 59 mm (12.05″× 11.42″× 2.32″)
- Net Weight0.238 kg (0.525 lb)
- Packing ListWireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
- Packing MethodSingle pack
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH non-condensing
- Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Storage Humidity5% to 90% RH non-condensing
- Installation ModeDesktop installation
- Max. Power Consumption≤ 9 W
- Gross Weight0.738 kg (1.627 lb)
- Wireless Parameter
- Data Rate
- ≤ 1167 Mbps
- 2.4 GHz: 300 Mbps
- 5 GHz: 867 Mbps
- Wireless StandardIEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
- Transmitting Power18 dBm
- Wireless Performance
- 4 × 4 MU-MIMO supported
- Beamforming supported
- Receiving Sensitivity
- 58 ± 2 dB@AC80 -MCS9
- 84 ± 2 dB@AC80 -MCS0
- Antenna4 high gain antennas
- Hardware Parameter
- Network Interface4 × RJ45, 10/100/1000 Mbps auto-negotiation
- LED IndicatorLED indicator
- ResetReset button
- Power Supply Method9 VDC, 1 A power adapter power supply
- Power Specifications9 VDC, 1 A
- Software Function
- Application function
- Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
- DHCP Server supported
- Guest Network Configuration supported
- Signal Adjustment supported
- WiFi Schedule supported
- Security ModeWPA-PSK, WPA2-PSK, WPA and WPA2 supported
- Security MechanismHide SSID
- Management MethodWeb
- UpgradeWeb Update and Upgrade
- System LogSystem log
- WAN ModeDHCP,Static IP,PPPoE
