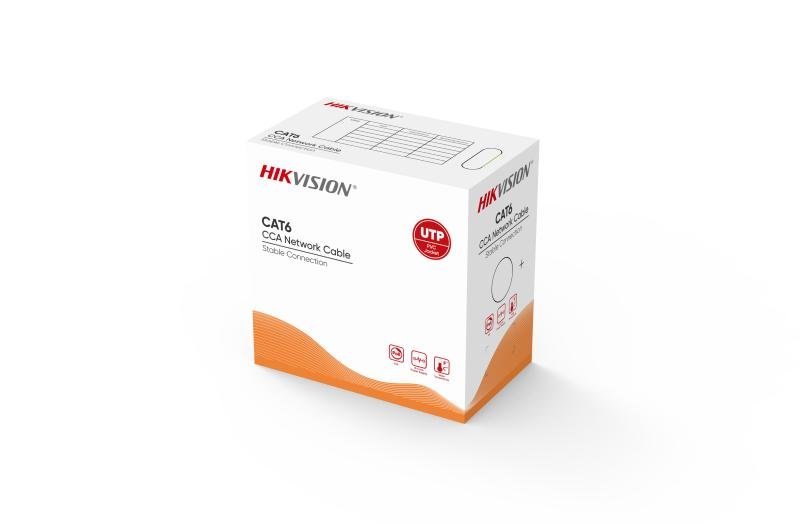

DS-1LN6UU/CCA
CAT6 U/UTP Network Cable (CCA, 0.57mm)
- Stable electrical performance, compliant with ANSI/TIA-568.2-D.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 90-meter channel test.
- meet CE CPR Eca flame retardant class certified.
- Compliant with RoHS 2.0.
Description
- General
- CategoryCat 6
- Structure U/UTP
- Fire ResistanceCPR Eca
- Usage ScenarioIndoor
- Conduct
- Conductor MaterialCCA
- Conductor Diameter0.57 ± 0.01 mm 23AWG
- Insulation
- Insulation Diameter1.02 ± 0.05 mm
- Sheath
- Sheath MaterialPVC
- Sheath ColorGrey
- Structure
- Length305 ± 1.5 m
- Rip CordYes
- SeparatorYes
