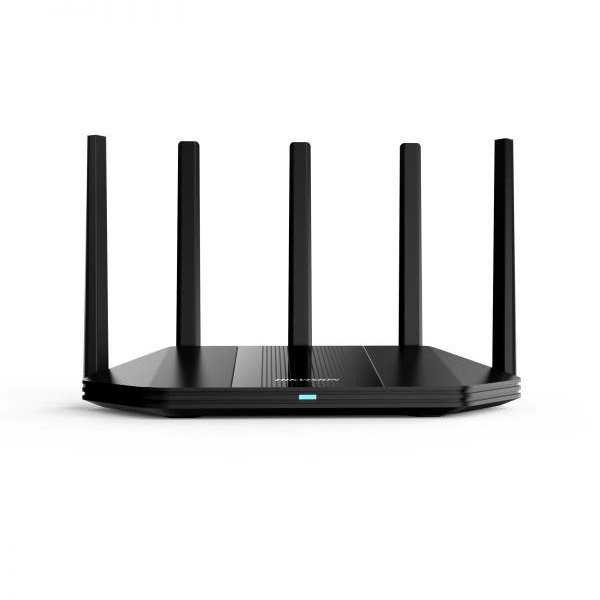

DS-3WR18X
1800M Wi-Fi 6 Wireless Router
- 1800Mbps Wi-Fi 6
- Wired Wireless Dual Gigabit
- Dual Band in One and 5G First
- APP Management
Description
- General
- Product Dimensions (W × H × D)281.7 mm × 145.0 mm × 204.1 mm
- Package Dimensions (W × H × D)365 mm × 340 mm × 73 mm
- Net Weight0.40 kg
- Gross Weight0.790 kg
- Packing List
- 1800Mbps Wi-Fi6 Router x 1
- Power Supply Adaptor × 1
- CAT5e Network Cable × 1
- Quick Start Guide × 1
- Regulatory Compliance and Safety Information × 1
- Packing MethodSingle pack
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH non-condensing
- Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Storage Humidity5% to 95% RH non-condensing
- Installation ModeDesk-Mounted,Wall-Mounted
- Wireless Parameter
- Wireless Standard
- IEEE 802.11a/n/ac/ax @5GHz
- IEEE 802.11b/g/n/ax @2.4GHz
- Working Frequency Band2.4 GHz，5 GHz
- Wireless Range
- Up to 1506 ft²/140 m²
- （Recommend coverage for home use, actual Wi-Fi range varies depending on the layout and wall materials）
- Max. Connections256
- Recommended Connections60
- Transmitting Power
- CE:
- ＜20dBm(2.4GHz)
- ＜23dBm(5GHz)
- Wireless Features
- Dual Band Supported
- MU-MIMO supported
- Beamforming supported
- OFDMA supported
- Antenna5 high gain antennas
- Antenna Gain5dbi
- Receiving Sensitivity
- 5GHz:
- -89dBm@HE80-MCS0
- -60dBm@HE80-MCS11
- 2.4GHz:
- -93dBm@HT40-MCS0
- -73dBm@HT40-MCS7
- Max. Wi-Fi Speed
- ≤ 1800 Mbps
- 5GHz: 1201Mbps
- 2.4GHz: 574Mbps
- Hardware Parameter
- Network Interface1 × 10/100/1000 Mbps Adaptive WAN Port,3 × 10/100/1000 Mbps Adaptive LAN Port
- LED IndicatorRed/blue for different working states, flashing mode
- ButtonReset button, WPS/MESH Button
- RAM256MB
- ROM128MB
- Power Supply MethodPower Supply Adapter
- Power SpecificationsDC 12 V, 1 A
- Max. Power Consumption≤10 W
- Software Function
- Operating Mode
- Router Mode
- Wireless Extender Mode
- Access Point Mode
- WAN Mode
- DHCP
- Static IP
- PPPOE
- IP Version
- IPv4
- IPv6
- Parental Control
- Speed Limit
- Internet Access Period
- Filter URL
- Parental Control
- Custom Profiles
- Firewall
- Forbid UDP flood attack
- Forbid TCP SYNC flood attack
- Forbid ICMP flood attack
- DDNSOray
- VPN
- PPTP Client
- L2TP Client
- NAT Forwarding
- Port Mapping
- DMZ
- UPnP
- OthersVLAN/IPTV,WAN Self-Adaption,Quick Diagnosis,WIFI Optimization
- MESHHikvision Mesh
- Security ModeWPA2-PSK,WPA/WPA2-PSK supported
- Security Mechanism
- Support fast and secure WPS connection
- Support hiding wireless network name
- Support controlling terminal network connection
- Support firewalls
- Login Authentication
- Management Method
- Web Control: PC, mobile
- App Control: HPP, HC
- TR069(TR098/TR181)
- Upgrade
- Web Upgarde
- App Cloud Upgrade
- Auto Upgrade
- System LogSystem log
Reviews (0)
Additional Information
Related products

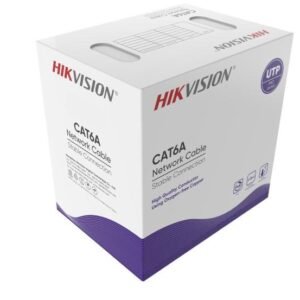

DS-1LN6AUUC0
Unshielded Cat6A, 0.56mm
- Stable electrical performance, compliant with ANSI/TIA-568.2-D, ISO/IEC11801.
- Supports Gigabit Ethernet (10GbaseT) standard，with bandwidth of 500MHz.
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57V/1A DC power (PoE).
- Compliant with RoHS 2.0.

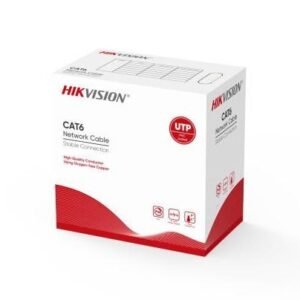

DS-1LN6OUTPE
