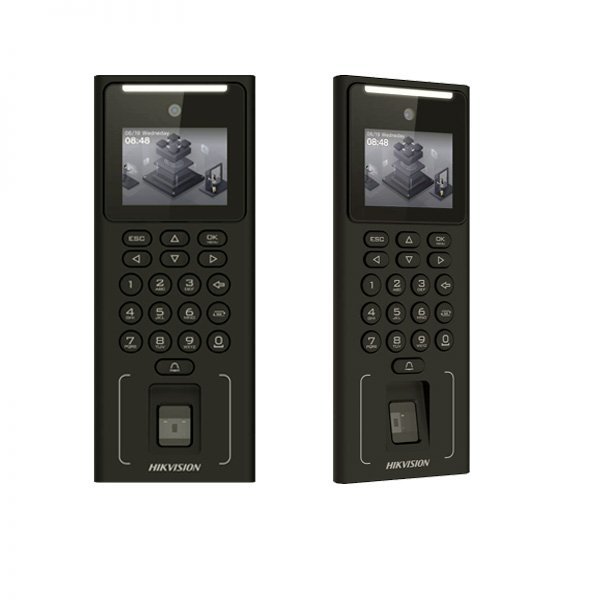

DS-K1T321MFWX-B
Value Series Face Access Terminal
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication methods, including face, fingerprint, card (M1 card), and PIN, etc.
- Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
- Face recognition duration < 0.2 s/User
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via the PC web client and mobile web client
- Supports wired network and Wi-Fi (AP mode)
- Supports wiring with secure door control unit or card reader via RS-485
- Supports power supply by battery in the bracket
- Supports access control and local time and attendance function
Description
- System
- Operating systemLinux
- Display
- Screen size2.4 inch
- TypeLCD
- Resolution320 Ă— 240
- Video
- Lens1
- Resolution2 MP (video stream: 720P)
- Video standardPAL (Default) and NTSC
- Audio
- Audio outputBuilt-in buzzer
- Network
- Wired networkSupport
- Wi-FiSupport, 2.4 G, 802.11b/g/n
- Interface
- Network interface1 RJ-45, 10/100 M self-adaptive
- Lock control1
- Exit button1
- Door contact input1
- TAMPER1
- RS-4851 RS-485 (Half duplex, HIKVISION)
- USB1
- Capacity
- Face capacity500
- Fingerprint capacity3000
- Card capacity3000
- Event capacity150,000
- Authentication
- Face recognition distance0.3 m ~ 1.5 m
- Face recognition accuracy rate> 99%
- Face recognition duration< 0.2 s
- Card typeM1 card
- General
- Power supply
- 12 VDC
- Supports power supply by battery in the bracket
- Power consumption≤ 6 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity0 to 90% (No condensing)
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
- KeypadSupport
- Function
- Face anti-spoofingSupport
- Face recognitionSupport
