DS-K1T804AEF
K1T804A Pro Series Fingerprint Terminal
- Integrated management of access control and the time and attendance functions
- 3,000 fingerprints, 3,000 cards and 100,000 events storage
- Built-in card reader for EM card
- Communication via TCP/TP and Wi-Fi
- RS-485, wiegand interface
- Alarm input and output interface
- ISUP5.0, ISAPI
Description
- Display
- Screen size2.4-inch
- Resolution320 × 240
- TypeLCD-TFT display screen
- Audio
- Audio output1 loudspeaker, 1 buzzer
- Network
- Wired networkTCP/IP, 10/100Mbps, self-adaptive
- Wi-FiSupport
- Interface
- Network interface1
- RS-4851
- Wiegand1
- Lock control1
- Exit button1
- Door contact input1
- Alarm input1
- Alarm output1
- TAMPER1
- USB1
- Capacity
- Card capacity3000
- Fingerprint capacity3000
- Event capacity100,000
- Authentication
- Card typeEM card
- Card reading distance0 to 5 cm
- Card reading duration＜ 1 s
- Fingerprint moduleOptical fingerprint module
- Fingerprint comparing mode1:1 and 1:N
- Fingerprint recognition duration＜ 1 s
- General
- IndicatorPower/status (red/green)
- Power supply12 VDC/1 A
- Working temperature-10 °C to +55 °C (14 °F to +131 °F)
- Working humidity10% to 90% (no condensing)
- ColorBlack (included), gold (optional), silver (optional), white (optional)
- Dimensions205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
- InstallationSurface mounting
- LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
Reviews (0)
Additional Information
Related products
DS-K1107AEK
Card Reader
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in EM card reading module (Frequency:125KHz).
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
DS-K1A340FX
Value Series Face Access Terminal
- Local time attendance
- 4.3-inch touch screen and 2 MP camera
- Face anti-spoofing; Face recognition distance: 0.3m to 1.5m
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Deep learning algorithm
- 1500 face capacity, 3000 fingerprint capacity, and 300,000 attendance records
- Export registered face pictures and events from device via USB interface
- Manage, search and set device data after logging in the device locally

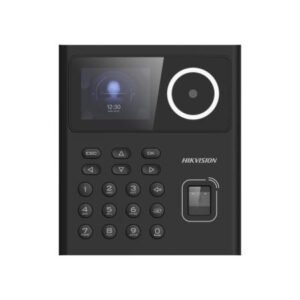

DS-K1T320MFWX-B
Value Series Face Access Terminal
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication methods, including face, fingerprint, card, and PIN, etc.
- Supports M1 card
- Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
- Face recognition duration < 0.2 s/User
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via the web client
- Supports power supply by battery in the bracket
- Supports access control and local time and attendance function
DS-K1T343MFWX
Value Series Face Access Terminal
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Duration < 0.2 s/User
- Accuracy rate ≥ 99%
DS-K1T343MFWX-B
Value Series Face Access Terminal
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Duration < 0.2 s/User
- Accuracy rate ≥ 99%
- Supports power supply by battery in the bracket
- Supports access control local time and attendance function

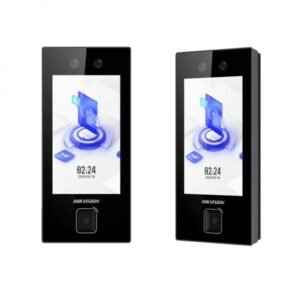

DS-K1T344MBWX-QRE1
