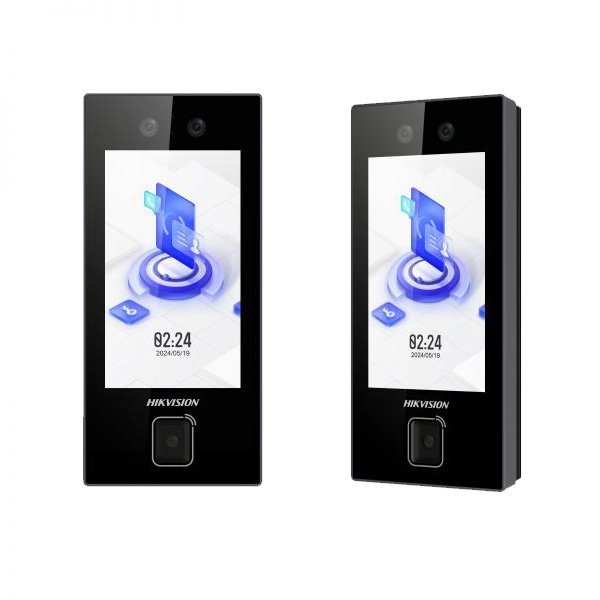

DS-K1T344MBWX-QRE1
Value Series Face Access Terminal
- Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module
- Max.3000 faces capacity, and Max.3000 cards
- Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
- Supports face, card, PIN, and QR code authentication
- Two-way audio with client software, indoor station, and main station.
- Supports mobile web and PC web for configuration
- Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
Description
- System
- Operating systemLinux
- Display
- Screen size4.5-inch
- Resolution480 × 854
- TypeLCD
- Operation methodTouchable
- Video
- Lens× 2
- Video standardPAL (Default) and NTSC
- Network
- BluetoothSupport
- Wired network10/100 Mbps self adaptive
- Wi-FiSupport
- Interface
- Alarm input2
- Alarm output1
- PoEIEEE802.3at, standard PoE
- Network interface1
- RS-4851
- Wiegand1, supports Wiegand input, single direction
- Lock control1
- Exit button1
- Door contact input1
- TAMPER1
- USB1
- Capacity
- User capacity3000
- Card capacity3000
- Face capacity3000
- Event capacity150000
- Authentication
- Card typeM1 card;M1 card content
- Card reading frequency13.56 MHz
- Face recognition duration＜ 0.2 s
- Face recognition accuracy rate＞99%
- Face recognition distance0.3 to 1.5 m
- General
- ButtonNo physical call button
- Power supply12 VDC, 1 A, standard PoE
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity10 to 90% (No condensing)
- Dimensions165.2 mm × 75.7 mm × 25 mm (6.5″ × 2.98″ × 0.98″)
- InstallationWall mounting
- Protective levelIP65
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese, Kazakh, Uzbek
- Gross weight: 0.60 kg (1.33 lbs)
- Net weight: 0.30 kg (0.66 lbs)
- Function
- QR code recognitionSupport scan QR code via QR code module or camera
- Face anti-spoofingSupport
- Two-way audioSupport
- Audio promptSupport
