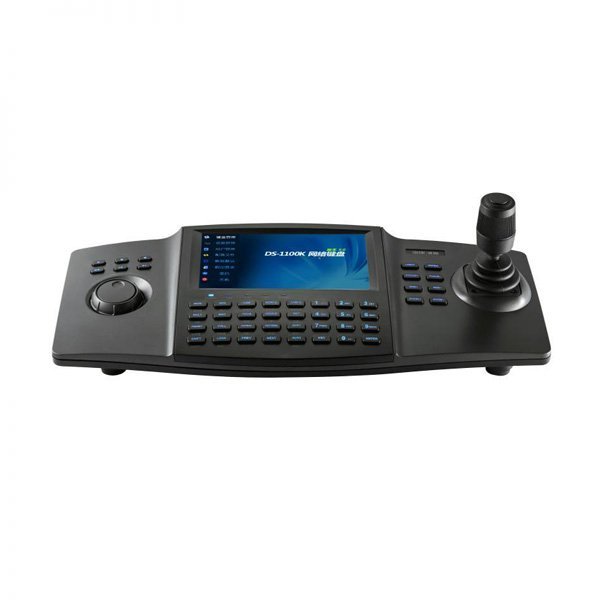

DS-1100KI(C)
Network Keyboard
- Supports video wall division by areas
- Supports window opening/closing, window movement, window scaling, window division, sub-window scaling and other operations
- Supports group operation, macro operation and other batch operations
- Supports the real-time preview of the camera image via the keyboard
- Supports switching the camera location ID by using the PREV button and NEXT button on the keyboard
- Supports PTZ direction control via the 4-axis joystick
- Supports decoder playback via the video wall
- Supports the playback of the DVR and NVR video files via the keyboard and supports the picture capturing and clipping
- Supports device access via the SDK and ONVIF standard protocols
- Accessible to iSecure and HikCentral
- Allows 32 users (1 administrator and 31 operators) to manage a maximum of 4000 devices
- Supports adding, modifying, and deleting the camera locations in batches
- Supports import/export of configuration files
Description
- Interface
- Network InterfaceRJ-45 100 M/1000 M self-adaptive Ethernet interface Ă— 1
- Wi-FiNot supported
- USB Interface TypeUSB 2.0 Ă— 1
- Serial InterfaceRS-485, RS-422
- General
- Power Supply12 VDC
- Power Consumption≤ 15 W
- Dimensions (W Ă— H Ă— D)435 mm Ă— 193 mm Ă— 110 mm (17.13 inch Ă— 7.60 inch Ă— 4.33 inch) (L Ă— W Ă— H)
- Gross Weight3.42 kg (7.54 lb.)
- Working Temperature-10 °C to 55 °C (14°F to 131°F)
- Working Humidity10% to 90%
- Control MethodNetwork method, serial control
- Display7 inch LCD
- Joystick4-axis single button joystick
- Audio Input
- Audio Input Interface3.5 mm stereo, supporting the audio communication
- Audio Output
- Audio Output Interface Type3.5 mm stereo, supporting the audio communication
- System
- SystemLinux system
- Decoding
- Decoding Performance4 Ă— 1080p
- Certification
- Obtained CertificationCE EMC,CB,CE LVD,IC VOC, EAC,RCM,FCC SODC,UL,CE-ROHS,WEEE,REACH
- FCCPart 15 Subpart B,ANSI C63.4-2014
- CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-2:2013+A1:2019, EN 50130-4:2011+A1:2014,EN 55035:2017+A11:2020
