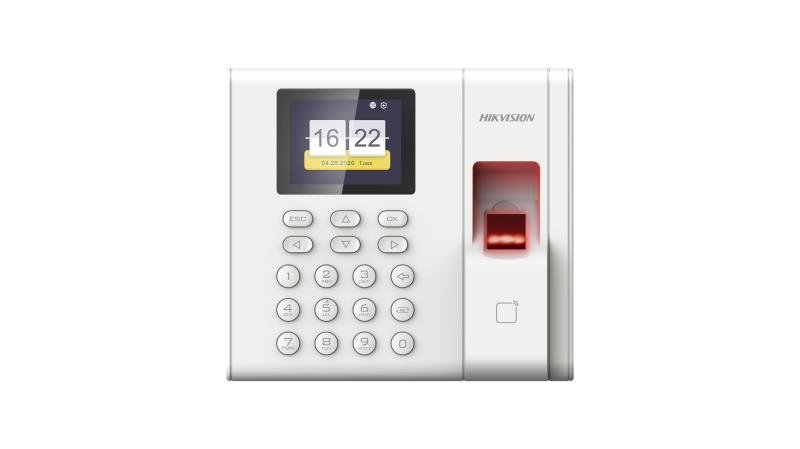

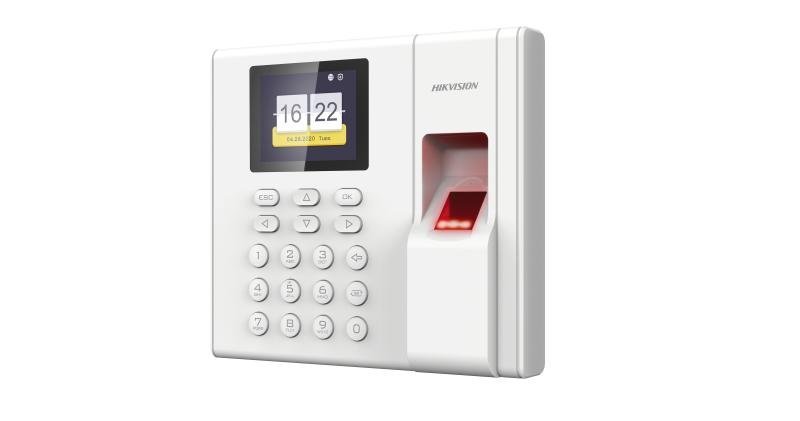

DS-K1A8503EF-B
K1A8503 Value Series Fingerprint Time Attendance Terminal
- 2.4-inch LCD screen to display time, date, week, and attendance information
- TCP/IP communication
- 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
- Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
- Stand-alone operation (supports adding persons, cards, and fingerprints locally)
- Downloads attendance reports by USB flash drive
- Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Generates reports automatically
- Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
- Supports ISAPI protocol and ISUP 5.0 protocol
Description
- Display
- Screen size2.4-inch
- TypeLCD-TFT display screen
- Network
- Wired networkTCP/IP, 10/100Mbps, self-adaptive
- Interface
- Network interface1
- USB1
- Authentication
- Fingerprint moduleOptical fingerprint module
- Fingerprint comparing mode1:1 and 1:N
- General
- BatterySupport
- Power supply5 VDC/1 A
- Working temperature-10 °C to +55 °C (14 °F to +131 °F)
- Working humidity10% to 90% (no condensing)
- Dimensions140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
- InstallationWall mounting
- ColorWhite
