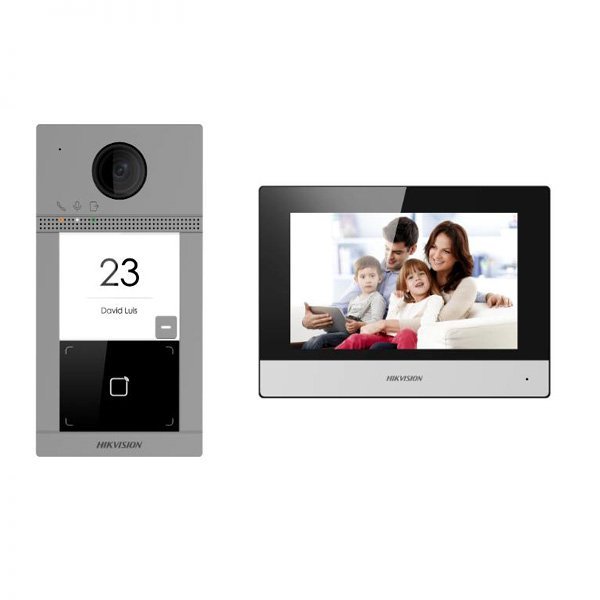

DS-KIS604-P(C)
IP video intercom kit
- IP video intercom kit for villa or house
- One call button for easier calls
- Convenient Hik-Connect APP Mobile Control
- Stores messages and captured pictures in the TF card
- Including: DS-KV8113-WME1(C) × 1, DS-KH6320-WTE1 × 1, PSU × 2, 16 GB TF card × 1
- Power adapter included in the package
Description
- Door station/System parameters
- Operation systemEmbedded Linux operation system
- Flash
- 32 M
- RAM
- 256 M
- Door station/Video parameters
- Supplement lightIR supplement
- Resolution
- Main stream : 1920 × 1080p, 1280 x 720p
- Sub stream : 1280 x 720p, 640 × 480p
- Lens1
- WDRSupport
- FOVHorizontal: 124° Vertical: 75°
- Video compression standardH.264; h.265; MJPEG
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker (more than 80 dB within 30 cm)
- Volume adjustment Adjustable
- Audio compression standardG711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
- Audio compression Rate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Door station/Capacity parameters
- User capacity2000
- Door station/Network parameters
- Network protocol TCP/IP, RTSP
- Wi-FiWi-Fi 802.11 b/g/n
- Wired network10/100 Mbps self-adaptive Ethernet
- 3G/4G/
- Bluetooth/
- Door station/Device interfaces
- Network interface1
- RS-4852
- Lock control2
- Exit button2 Max.
- Door contact2
- Alarm input4
- Alarm output0
- Power interface1
- TAMPER1
- TF card1 (reserved)
- Door station/General
- Button1
- Indicator3
- Power consumption
- ＜ 10 W
- Power supply
- IEEE802.3af, standard PoE
- 12 VDC
- Working temperature-40° C to 53° C(-40° F to 127.4° F)
- Working humidity10% to 95%
- Dimension174 mm × 91 mm × 29 mm
- InstallationSurface mounting
- Application environmentOutdoor
- Protection level
- IP65, IK08
- 380 g
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- Memory128 MB
- Flash 32 MB
- Indoor station/Display parameters
- Display screen7-inch colorful TFT screen
- Display resolution1024 × 600
- Operation methodCapacitive touch screen
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio quality
- Noise suppression and echo cancellation
- Audio compression standard
- G.711 U
- Audio compression Rate
- 64 Kbps
- Indoor station/Network parameters
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- Wired network
- 10/100 Mbps self-adaptive
- Wireless network
- Wi-Fi 802.11 b/g/n
- Protocol
- TCP/IP, SIP, RTSP
- Indoor station/Device interfaces
- RS-4851
- Alarm input8-ch alarm inputs
- Relay output2
- TF cardMax to 32 G, SD 2.0 or lower version
- Indoor station/General
- Power consumption
- ≤ 6 W
- Power supplyStandard PoE,12VDC
- Working temperature
- -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Dimension (L x W x H)
- 200 mm × 140 mm × 15.1 mm (7.9″ ×
- 5.5 × 0.6″)”
