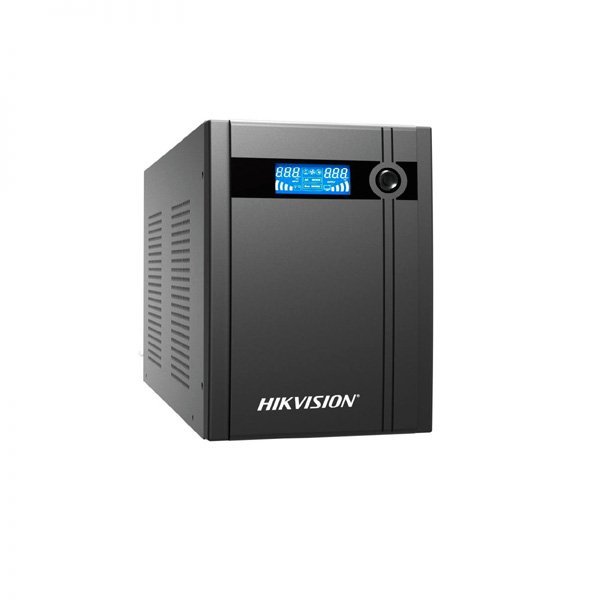

DS-UPS3000

DS-UPS3000

Power
UPS Capacity 3000 VA / 1800 W
Input
Input Voltage Range 140 VAC to 290 VAC
Input Frequency50/60 Hz self-adaptive
Plug TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);TYPE L (10A);UK TYPE G;Schuko
Output
Output Voltage Range210 VAC to 235 VAC
Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time≤ 10 ms
WaveformPWM
Outlet TypeAU TYPE I;TYPE H;Universal;TYPE L (10/16A)
Outlet Number4
Battery
Battery Type12 V/9 Ah *4 pcs, lead-acid battery
Recharge Time6-8 hours recover to 90% capacity
Typical Backup Time
Run time at 100w: 150 min
Run time at 600w: 15 min
Run time at 900w: 6 min
Interface
Communicate PortsUSB
Protection
Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection
Indicator
Display
LCD Screen
Input Voltage, Output Voltage, Battery capacity, load level
Alarm
Charging Mode (DC mode): Sounding every 8 seconds
Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding
General
Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
Operating Humidity30% to 90% (non-condensing)
Dimension412 mm × 145 mm × 210 mm (16.22″ × 5.71″ × 8.27″)
Approx. 18.5 kg (40.8 lb)
