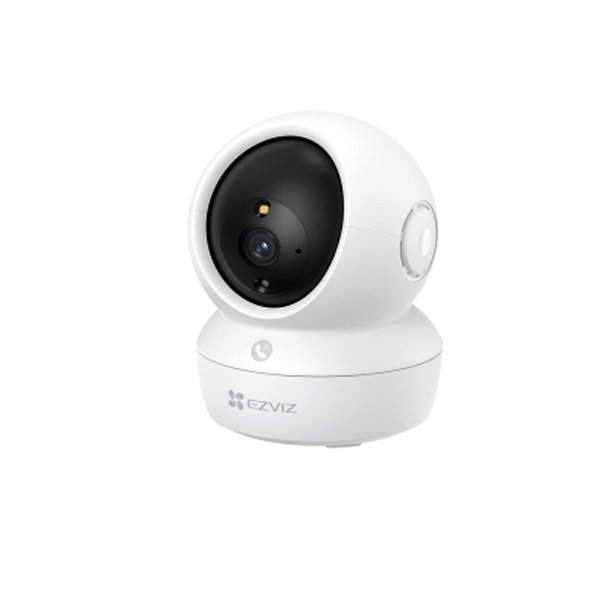

Type-C Pan & Tilt Smart Home Camera

• Fully-covered protection with added smartness
• 2K⁺ Resolution
• Panoramic View
• Patrol Mode
• Smart Color Night Vision


  Specifications
  Model	CS-H6c-R105-1J4WF
  Camera
  Resolution	4MP /2K+ Resolution
  Image sensor	F1.6@1/3″ Progressive Scan CMOS
  Shutter Speed	Self-adaptive shutter
  Lens	4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical)
  Lens Mount	M12
  Day & Night	IR-cut filter with auto-switching
  DNR	3D DNR
  WDR	Digital WDR
  Compression
  Video Compression	H.264/H.265
  Video Bit Rate	Adaptive bit rate.
  Max. Resolution	2560 × 1440
  Frame Rate	Max:30fps; Self-Adaptive during network transmission
  Network
  Smart Alarm	Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
  Wi-Fi Pairing	AP paring
  Protocol	EZVIZ cloud proprietary protocol
  Interface Protocol	EZVIZ cloud proprietary protocol
  Interface
  Storage	Micro SD card slot (Max. 512G)
  Power	TYPE-C
  Wired Network	RJ45 X 1 (10M/100M self-adaptive Ethernet port)
  Wi-Fi
  Standard	IEEE802.11a, 802.11b, 802.11g, 802.11n,
  Frequency Range	2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz
  Channel Bandwidth	Supports 20MHz
  Security	WPA/WPA2, WPA-PSK/WPA2-PSK
  Transmission Rate	11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7
  Output Power(EIRP)	19 dBm
  Antenna Gain	1.9 dBi
  General
  Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
  Power Supply	DC 5V/2A
  Power Consumption	8W max
  IR Range	MAX. 10 meters(32.81ft)
  Dimensions	88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)
  Packaging Dimensions	103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)
  Bare Weight	252g / 8.9oz
  In the box
  In the box	– Camera
  	– Power Adapter
  	– Power Cable
  	– Drill Template
  	– Mounting Plate
  	– EZVIZ Screw Kit
  	– Regulatory Information
  	– Quick Start Guide
  Certifications
  Certifications	CE / UL / WEEE / REACH / RoHS / UKCA

• Smart Human Shape Detection
• Auto-Zoom Tracking
• Loud Noise Detection
• Two-Way Calling
• Sleep Mode for Privacy Protection
• H.265 Video Technology
• Supports 2.4 / 5 GHz Dual-Band Wi-Fi
• Supports MicroSD Card (Up to 512 GB)
