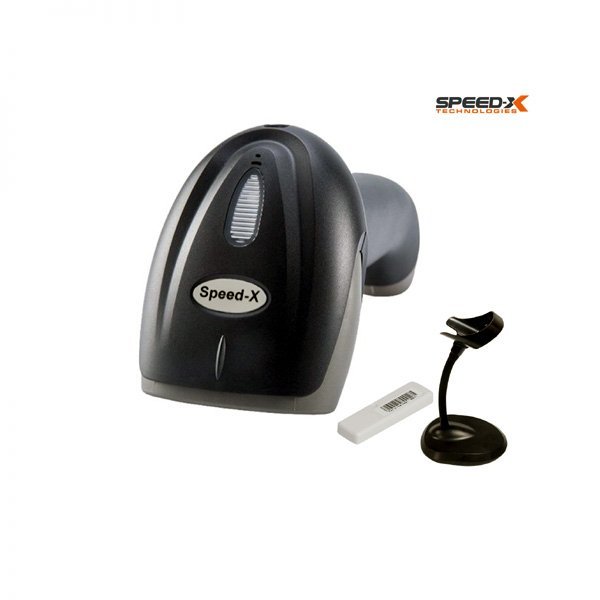

Speed-X 60d 2d Wireless 2.4ghz Barcode Scanner With Stand
Original price was: ₨ 9,800.00.₨ 7,800.00Current price is: ₨ 7,800.00.
Description
- Detail:
- (2D CMOS Wireless 2.4G Handheld Barcode Scanner)
- Technical Parameters
- Wireless specifications
- Communications 2.4GHz
- Communication frequency 2.402 to 2.480GHz
- Transmission range ≤30M（In empty area 30M ）
- Data rate 1Mbps
- Memory 100000@13Byte barcode
- Battery capacity 1500mAh (Lithium battery)
- Charging time 4.5H
- The life time of the full charge 4h（continuous reading situation）
- 9.5h（Manual reading situation）
- More than 15 days （Stand-by time)
- Communication mode Read-time mode/Inventory mode
- Electrical Characteristics
- Interface USB HID KEYBOARD（Wireless receiver）
- Voltage requirement Max:120mA
- Min：50mA
- Optical Characteristics
- Photo sensor CMOS array sensor
- SENSOR RESOLUTION 648 X 488 Pixels
- Light source White LED
- Aim light source Red Bar LED
- Performance Characteristics
- Decode angle Pitch angle:±60°;Skew angle:±60°;Tilt angle:±180°
- Min resolution 1D≥4mil
- 2D≥10mil
- Min.PCS value 〉15% UPC/EAN 13（13mil）
- Field of View 46°(H),35°(V)
- Identification 1D： Codabar，Code128，Code11，Code32，Code39，Code93，Composite，EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded，GS1 DataBar Limited，GS1 DataBar Omnidirectional，Hong Kong 2 of 5（China Post），Interleaved 2 of 5，Matrix 2 of 5 Pharmacode. RSS-14,RSS-LIMITED, RSS-EXPANDED, Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E
- 2D：Aztec Code，Codablock F，DOT_CODE, HANXIN, Maxicode，MicroPDF417，Micro QR Code，MSI，PDF417,QR Code, DataMatrix
- Physical Characteristics
- Dimensions Scanner：95mm×70mm×168mm（L x W x H）
- Receiver：83mm*18mm*13mm(L*W*H)
- Weight Scanner：186g
- Receiver：16g
- Environmental Characteristics
- Temp 0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)
- Humidity 20 – 85% (operation) ) 20 – 95% (storage)
- Shock drop test 1.5m drop onto concrete surface
- Ambient Light: fluorescent light 4000 lx max ,
- direct sun light 80,000 lx max ,white light 4000 lx max
- Decoding Depth of Field
- Symbology Resolution Nearest Farthest
- Code 39 20mil 5.5cm 35cm
- Code 128 15mil 6cm 31cm
- EAN-13 13.34mi 6cm 25cm
- QR code 20mil 4cm 21cm
- PDF417 13.34mil 3cm 29cm
