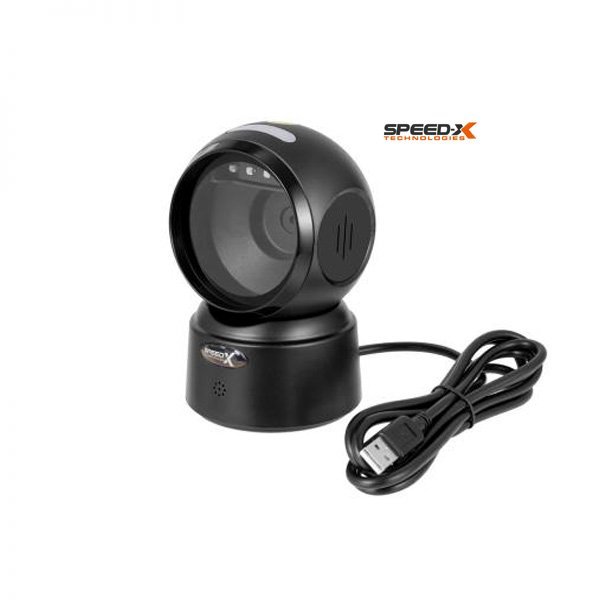

Speed x Sp-9260 2d Cmos Wired Desktop Barcode Scanner
Original price was: ₨ 12,500.00.₨ 7,500.00Current price is: ₨ 7,500.00.
| Electrical Characteristics | |
| Interface Supported | USB HID KEYBOARD/USB VCP |
| Input Voltage | DC 5V±5% |
| Current | Max:335mA |
| Optical Characteristics | |
| Image Sensor | CMOS Array Sensor |
| Sensor Resolution | 640 X 480 Pixels |
| Light Aimer | 617nm LED |
| Indication | Buzzer & LED |
| Trigger | Auto-sense, Button |
| Decoding speed | 60FPS |
Description
| Technical Specifications | |
| Electrical Characteristics | |
| Interface Supported | USB HID KEYBOARD/USB VCP |
| Input Voltage | DC 5V±5% |
| Current | Max:335mA |
| Optical Characteristics | |
| Image Sensor | CMOS Array Sensor |
| Sensor Resolution | 640 X 480 Pixels |
| Light Aimer | 617nm LED |
| Indication | Buzzer & LED |
| Trigger | Auto-sense, Button |
| Decoding speed | 60FPS |
| Performance Characteristics | |
| Scanning Angle | Pitch angle:±55°;Skew angle:±55°;Tilt angle:±360° |
| Field of View | 43° H),33° V) |
| Min Resolution | 1D≥4mil, 2D≥5mil |
| Min .PCS value | 〉20% UPC/EAN 13（13mil） |
| Language | Multiple Languages |
| Data Edition | Support for custom data output |
| Decode Capability | 1D: Codabar,Code39,Interleaved2of5,NEC2of5, Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI, GS1-DataBar Omnidirectional,GS1 DataBar Limited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5),GS1 Composite Codes,Codeblock A,Codeblock F,Code 32,EAN/JAN-8, ISSN, ISBN
2D：PDF417, QR Code, Data Matrix, Aztec code, HanXin code, Maxi Code, Micro PDF417, GS1 Composite |
| Physical Characteristics | |
| Dimensions | 85mm*85mm*140mm(L*W*H) |
| Weight | 370g |
| Indicator | Beeper, LED |
| Environmental Characteristics | |
| Temperature | -20°∽60°C (operation)
-30°∽70°C (storage) |
| Humidity | Relative humidity: 5% to 95% (no condensation) |
| Shock Drop Test | 1.5m drop onto concrete surface |
Decoding Depth of Field
| Symbology | Resolution | Nearest | Farthest |
| Code 39 | 5mil | 10mm | 90mm |
| Code 39 | 13mil | 0mm | 175mm |
| UPC-A | 3.34mil | 10mm | 170mm |
| QR | 20mil | 0mm | 130mm |
| QR | 30mil | 0mm | 180mm |
| Pay Code（QR 3*3cm） | – | 10mm | 320mm |
| Pay Code（QR 2.3*2.3cm） | – | 0mm | 260mm |
