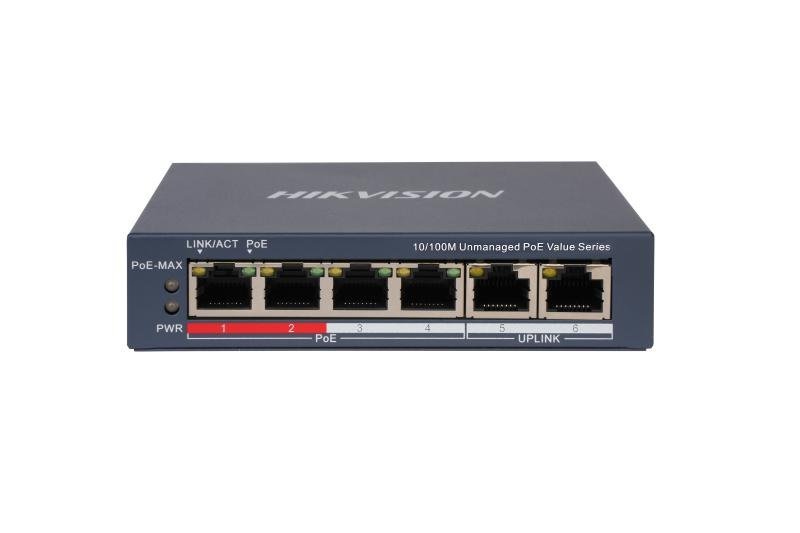

DS-3E0106P-E/M
4 Port Fast Ethernet Unmanaged POE Switch
- 4 x 10/100Mbps PoE port, and 2 × 10/100Mbps RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Description
- General
- ShellMetal material
- Net Weight0.27 kg (0.60 lb)
- Gross Weight0.52 kg (1.15 lb)
- Dimensions (W × H × D)145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 0.8 A
- Installation ModeDesk-Mounted,Wall-Mounted
- Max. Power Consumption38 W
- Power Consumption in Idle3 W
- Surge Protection6 KV
- Network Parameters
- Ports4 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- MAC Address Table2 K
- Switching Capacity1.2 Gbps
- Packet Forwarding Rate0.89 Mpps
- Internal Cache768 Kbits
- PoE Power Supply
- PoE StandardIEEE 802.3af;IEEE 802.3at
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPoE: Ports 1 to 4
- Max. Port Power30 W
- PoE Power Budget35 W
- Dialing Function
- Long Range
Ports 1 to 4 : up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- Software Function
- VIP PortPorts 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
Reviews (0)
Additional Information
Related products
DS-2CD1021G2-LIU(F)
2 MP Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- Support Human Detection
- Smart Hybrid Light: advanced technology with long range coverage
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
- Easy installation with Power over Ethernet (PoE) technology
- Support on-board storage up to 512 GB (SD card slot)
DS-2CD1023G0-IUF
2 MP Build-in Mic Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to DWDR technology
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- Support up to 256 GB SD card storage
- Built-in microphone for real-time audio security
DS-2CD1047G2H-LIUF/S(L)(RB)
4 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 4 MP resolution
- 24/7 colorful imaging
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range cover
- Provide real-time security via built-in two-way audio and strobe light alarm
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
DS-2CD1053G0-I(UF)
5 MP Fixed Bullet Network Camera
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- -UF: Built-in microphone for real-time audio security
DS-3E1105P-EI/M
4 Port Fast Ethernet Smart POE Switch
- 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
- Total PoE Power Budget 45W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 KV Surge Protection
DS-3E1309P-EI/M
8 Port Fast Ethernet Smart POE Switch
- 8 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port
- Total PoE Power Budget 60 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
DS-3E1326P-EI/M
24 Port Fast Ethernet Smart POE Switch
- 24 × 10/100M PoE ports, 1 × Gigabit combo,1 × Gigabit RJ45 port
- Total PoE Power Budget 230 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection

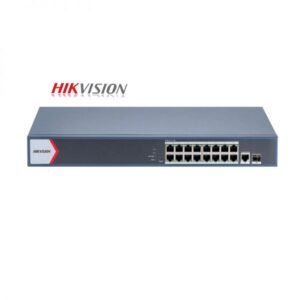

DS-3E1518P-EI/M(O-STD)
