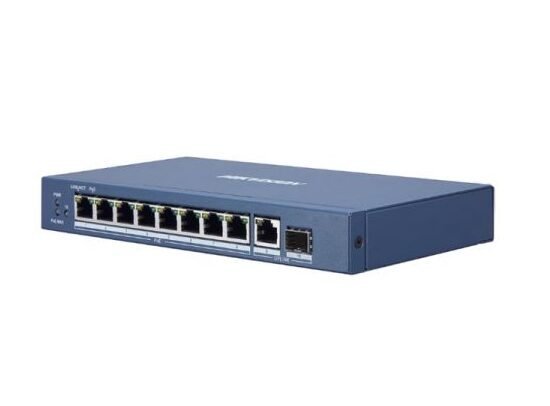

DS-3E0510P-E/M
8 Port Gigabit Unmanaged POE Switch
- 8 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design
Description
- General
- ShellMetal material
- Net Weight0.635 kg (1.40 lb)
- Gross Weight1.366 kg (3.01 lb)
- Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6” × 1.1” × 4.3”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Max. Power Consumption65 W
- Power Consumption in Idle7 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- Internal Cache1.5 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af;IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget58 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
