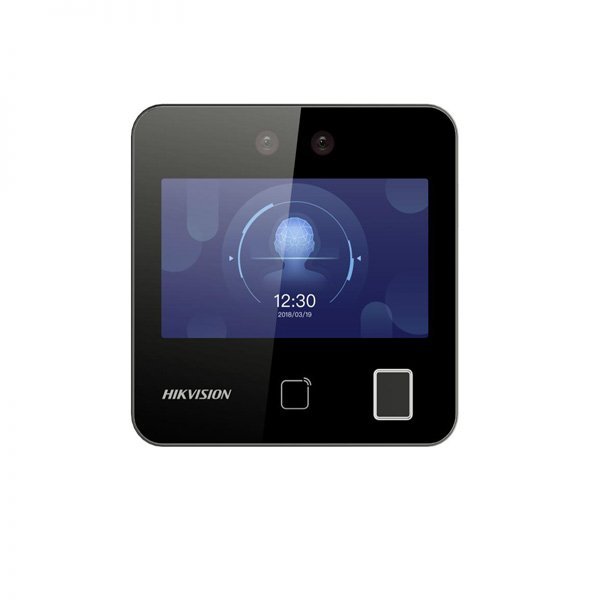

DS-K1T642MFW
Pro Series Face Recognition Terminals
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Face recognition distance: 0.3 m to 3 m
- Max. 6000 faces capacity, Max. 5000 fingerprints capacity, Max.10,000 cards, and Max. 150,000 event capacity
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Two-way audio with indoor station and main station
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Remotely opens door and starts live view via Hik-Connect
- Configuration via the web client
- Supports ISAPI and ISUP5.0 protocol
Description
- Display
- Screen size4.3 inch
- Operation methodCapacitive touch screen
- TypeIPS
- Video
- Lens2
- Resolution2 MP
- FOVHFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
- Audio
- Audio qualityNoise suppression and echo cancellation
- Network
- Wired networkSupport
- Wi-FiSupport, 2.4 G, 802.11b/g/n
- Interface
- Network interface1 RJ-45, 10/100/1000 M self-adaptive
- Lock control1
- Exit button1
- Door contact input1
- TAMPER1
- RS-4851 RS-485 (Half duplex, HIKVISION)
- Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
- USB1
- Authentication
- Card typeM1 card
- Card reading frequency13.56 MHz
- General
- Power supply12 VDC, 2 A (power adapter not included)
- Power consumption≤ 10 W
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity0 to 90% (No condensing)
- Dimensions118 mm Ă— 118 mm Ă— 20 mm (4.6” Ă— 4.6” Ă— 0.7”)
- InstallationSurface, optional base stand
- 0.5 kg (1.1 lb)
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
- PlatformHik-ProConnect and HikCentral Professional
- Function
- QR code recognitionSupport
- Face anti-spoofingSupport
