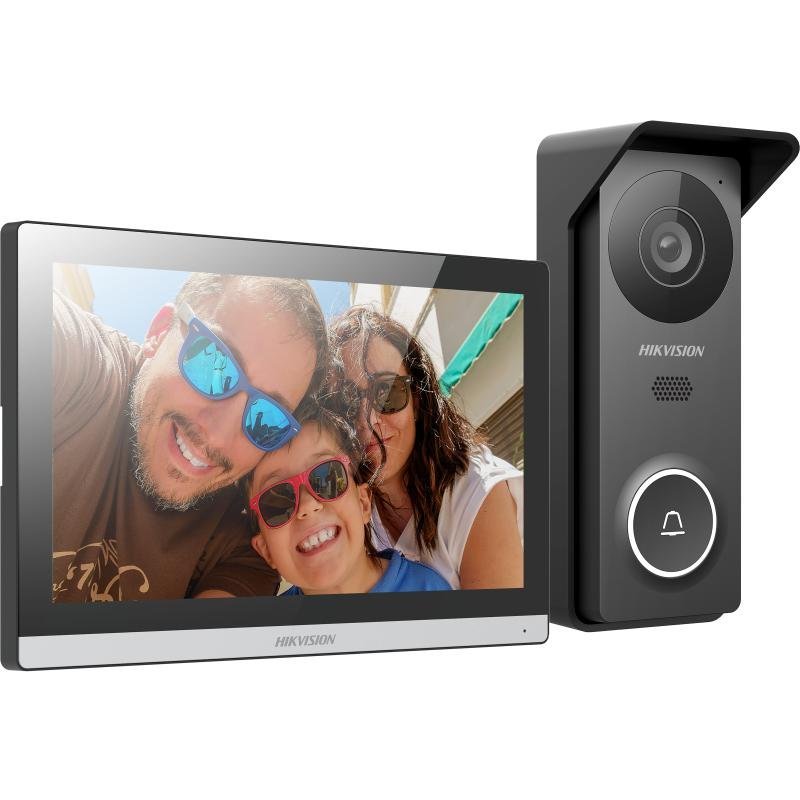

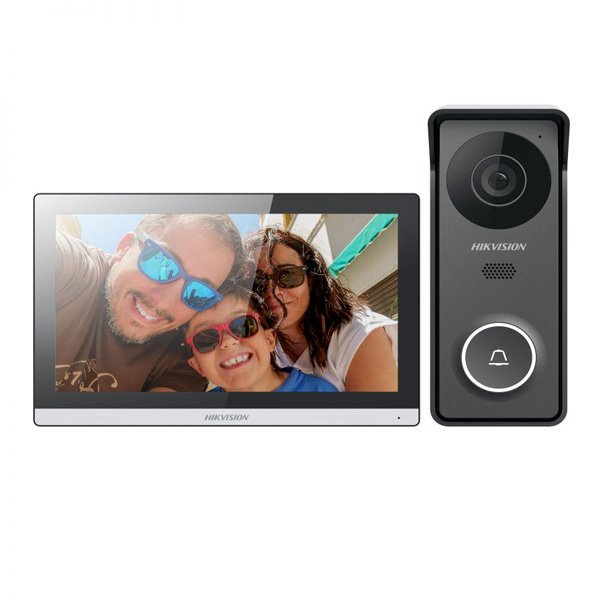

DS-KIS313-P(B)
Hybrid HD Intercom Kit
- Hik-Connect mobile control
- HD TVI video quality
- 7 inch touch screen
- Plug & Play
Description
- Door station/Video parameters
- Supplement lightIR light, up to 3 m
- ResolutionStream resolution:1280 * 720@60fps
- FOVHorizontal: 117°, Vertical: 70°, Diagonal: 141°
- Door station/Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 built-in loudspeaker
- Door station/Capacity parameters
- Linked indoor station capacity3
- Sub door station capacity1
- Card capacity/
- Door station/Device interfaces
- Lock control1 relay, max 30 V 1 A
- Power supply input12 VDC
- Debugging port1
- Four-Wire interface1
- Door station/General
- Button1 physical button(s)
- Indicator/
- Power supply12 VDC
- Power consumption≤ 4 W
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Application environmentOutdoor
- Dimension (W × H × D)55 mm × 145 mm × 24 mm (2.17″ × 5.71″ × 0.94″)
- InstallationSurface mounting
- Protective levelIP65, IK08
- MaterialAluminum alloy and Plastic
- Without package: 200 g (0.44 lb)
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- RAM128 MB
- ROM32 MB
- ProcessorEmbedded high performance processor
- Indoor station/Display parameters
- TypeColorful TFT
- Resolution1024 × 600
- Viewing AngleHorizontal 160°, vertical 130°
- Contrast700 (Typ)
- Luminance250 cd/m² （Typ）
- Operatiing methodCapacitive touch screen
- Screen size7-inch
- Indoor station/Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kps
- Audio compression standardG.711U, G.711A
- Audio qualityNoise suppression and echo cancellation
- Indoor station/Capacity parameters
- Linked network camera capacity/
- Linked indoor extensions capacity2
- Linked doorphone capacity2
- Linked analog camera1
- Indoor station/Network parameters
- Wi-FiWi-Fi 802.11 b/g/n
- Indoor station/Device interfaces
- Network interface/
- RS-485/
- Alarm input2
- Alarm output/
- Power supply input12 VDC
- TF cardSupport TF card, up to 128 G
- Debugging port2
- Four-Wire interface4
- Relay/
- Indoor station/General
- Button0 physical button
- Power supply12 VDC
- Power consumption≤ 5 W
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)175 mm × 113.5 mm × 18.1 mm (6.89″ × 4.47″ × 0.71″)
- InstallationSurface mounting
- Application environmentIndoor
- Without package: 260 g (0.573 lb)
- LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
