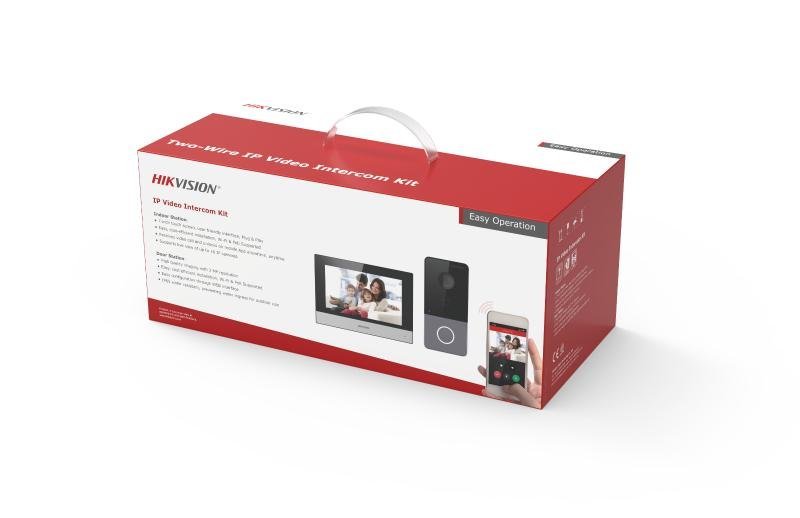

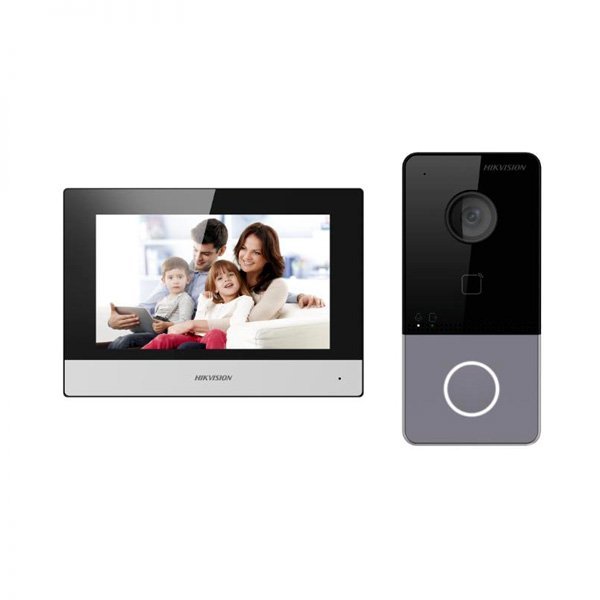

DS-KIS603-P(C)
IP Video Intercom Kit
- IP video intercom bundle for villa or house
- One call button for easier calls
- Convenient Hik-Connect APP Mobile Control
- Including: DS-KV6113-WPE1(C) × 1, DS-KH6320-WTE1 × 1, PSU × 2
- Power adapter included in the package
Description
- Door station/System parameters
- Operation systemEmbedded Linux operation system
- Flash32 MB
- RAM256MB
- Door station/Video parameters
- Camera2MP HD camera
- Night visionLow illumination IR supplement mode:3 m
- Backlight compensationSupport
- Digital noise reductionSupport
- WDRTrue WDR
- Field of viewHorizontal: 131° Vertical: 78°
- Video Compression StandardH.264; H.265; MJPEG
- StreamMain stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps
- Motion detectionSupport
- Flash-avoid frequency50 Hz, 60 Hz
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
- Audio compression Rate64 Kbps
- Door station/Network parameters
- Network protocolTCP/IP, RTSP, IPV6,ONVIF
- Wired network10/100 Mbps Ethernet
- Door station/Device interfaces
- RS-485 1
- Alarm input4
- Debugging port1
- TAMPER switch1
- Door station/General
- Power consumption＜ 10 W
- Working temperature-40° C to 53° C(-40° F to 127.4° F)
- Working humidity10% to 95%
- Dimension138 mm × 65 mm × 27 mm
- InstallationSurface mounting
- Protection level IP65
- Indicator2
- Power supply
IEEE802.3af, standard PoE
12 VDC
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- Memory128 MB
- Flash 32 MB
- Indoor station/Display parameters
- Display screen7-inch colorful TFT screen
- Display resolution1024 × 600
- Operation methodCapacitive touch screen
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Indoor station/Network parameters
- Wired network 10/100 Mbps self-adaptive
- Wireless networkWi-Fi 802.11 b/g/n
- ProtocolTCP/IP, SIP, RTSP
- RS-4851 RJ-45 10/100 Mbps self-adaptive
- Indoor station/Device interfaces
- RS-4851
- Alarm input8-ch alarm inputs
- Relay output2
- TF cardMax to 32 G, SD 2.0 or lower version
- Indoor station/General
- Power consumption≤ 6 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
