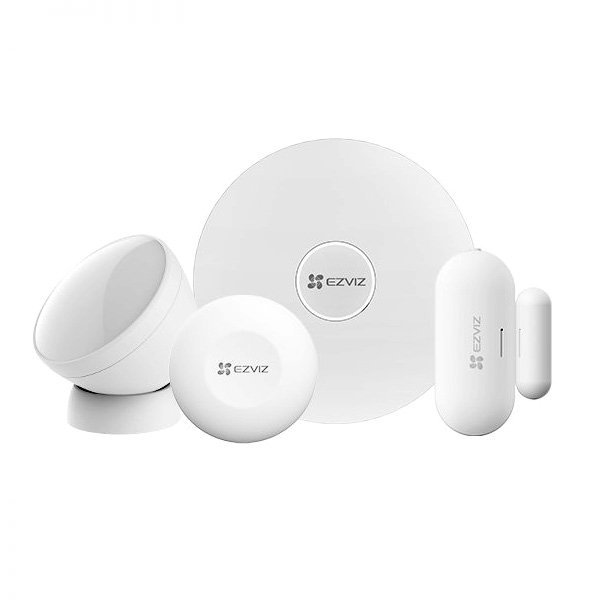

EZVIZ 4-Piece Home Sensor Kit
A well-thought-out solution for a safer home
- Easy Set-Up & Control via EZVIZ App
- Instant Mobile Alerts on Detections
- Energy-Saving Design with Long Battery Life
- Peel-and-Stick Installation
- Easy Pairing
- Compact and Cleverly Designed
- Smart Integration With EZVIZ Cameras
Description
| Specifications – Home Getaway | |
|---|---|
| Model | CS-A3-A0-W |
| General | |
| Operation Conditions | -10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing) |
| Dimensions | Φ 70.0 × 25.4 mm (Φ 2.75 × 1.00 inch) |
| Net Weight | 71 g (2.5 oz) |
| Package Size | 95.5 Ă— 80.5 Ă— 98.5 mm (3.8 Ă— 3.2 x 3.9 inch) |
| Power Supply | Uses Micro USB, DC 5V / 1A |
| Power Consumption | Max.3W |
| Network | |
| Communication Methods | RJ45 interface network cable Wi-Fi 2.4 GHz ZigBee 3.0 |
| Communication Distance | Wi-Fi (2.4 GHz) < 200 m ZigBee 3.0 < 200 m (Tested in open environment) |
| Antenna | Built-in |
| Specifications – PIR Sensor | |
| Model | CS-T1C-A0-BG |
| General | |
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing) |
| Dimensions | Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch) |
| Package Size | 92 Ă— 52 Ă— 93 mm (3.6 Ă— 2.0 Ă— 3.7 inch) |
| Weight | 92 g (3.2 oz) with package |
| Detection | |
| Detection Type | Passive infrared (PIR) |
| Detection Distance | Up to 7 m / 23 ft |
| Detection Angle | 90° horizontal, 90° vertical |
| Recommended Installation Height | 1.8 to 2.5 m for wall-mounted installation |
| Pet-Proof Detection | Requires using the pet shield and an installation height of 50 cm or higher above the pet |
| Function | |
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Methods | Adhesive back with magnetic parts. Supports wall and ceiling flip-over installation |
| Battery | |
| Battery Type | Cell battery CR2450 |
| Battery Life | High-performance mode: Up to 1 year Energy-saving mode: Up to 2 years |
| Network | |
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
| Specifications – Open/Close Sensor | |
| Model | CS-T2C-A0-BG |
| General | |
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing) |
| Dimensions | Main body: 53.5 Ă— 22.5 Ă— 13.5 mm (2.1 Ă— 0.9 Ă— 0.5 inch) Magnet: 32.0 Ă— 10.5 Ă— 13.5 mm (1.2 Ă— 0.4 Ă— 0.5 inch) |
| Package Size | 92 Ă— 52 Ă— 93 mm (3.6 Ă— 2.0 Ă— 3.7 inch) |
| Weight | 80 g (2.8 oz) with package |
| Detection | |
| Detection Type | 80 g (2.8 oz) with package |
| Recommended Trigger Distance | Wooden door > 25 mm Iron door > 15 mm |
| Function | |
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Method | Adhesive back for peel-and-stick installation |
| Battery | |
| Battery Type | Cell battery CR1632 Ă— 2 |
| Battery Life | Up to 2 years (Based on the usage of 30 detections per day) |
| Network | |
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
| Specifications – Smart Button | |
| Model | CS-T3C-A0-BG |
| General | |
| Operation Conditions | -10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing) |
| Dimensions | Φ 40.6 × 12.3mm (Φ 1.6 × 0.5 inch) |
| Package Size | 92 Ă— 52 Ă— 93 mm (3.6 Ă— 2.0 Ă— 3.7 inch) |
| Weight | 68 g (2.4 oz) with package |
| Control Methods | |
| Single Click | < 2 s |
| Double Click | Interval time < 0.5 s |
| Long Press | ≥ 2 s |
| Modes | Arm / Disarm Mode, Emergency Button Mode |
| Function | |
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Method | Place anywhere; adhesive back for peel-and-stick installation |
| Battery | |
| Battery Type | Cell battery CR2032 |
| Battery Life | Up to 2 years (Based on the usage of 15 clicks per day) |
| Network | |
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
| In the box | |
| In the box | – A3 Home Gateway |
| – Power Adapter for A3 | |
| – USB Cable for A3 | |
| – T1C PIR Sensor | |
| – Pet Shield for T1C | |
| – T2C Open/Close Sensor | |
| – T3C Smart Button | |
| – Doubled-sided Tape Strips (3) | |
| – Regulatory Information | |
| – Quick Start Guide | |
