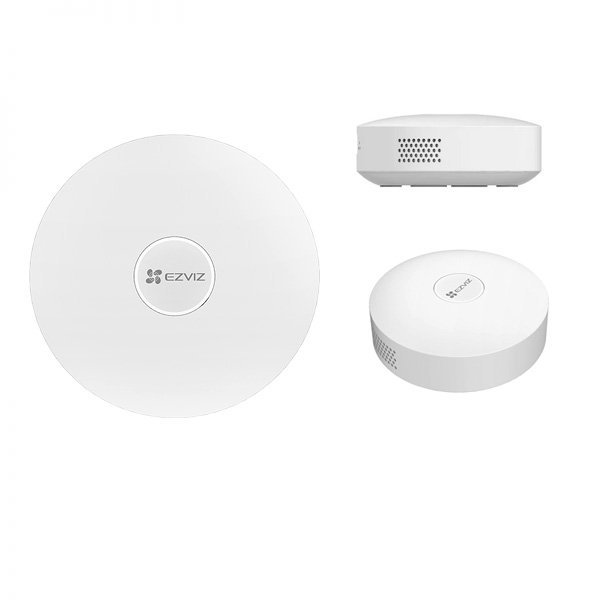

EZVIZ A3 Home Gateway
A hub for your connected and protected home.
- Easy Set-Up & Control via EZVIZ App
- Supports Wired and Wi-Fi Internet Connection
- 20 Alarm Sounds Available
- Instant Mobile Alerts
- Super Small Size
- Connects up to 64 EZVIZ Devices
Description
| Specifications | |
|---|---|
| Model | CS-A3-A0-W |
| General | |
| Operation Conditions | -10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing) |
| Dimensions | Φ 70.0 × 25.4 mm (Φ 2.75 × 1.00 inch) |
| Net Weight | 71 g (2.5 oz) |
| Package Size | 95.5 × 80.5 × 98.5 mm (3.8 × 3.2 x 3.9 inch) |
| Power Supply | Uses Micro USB, DC 5V / 1A |
| Power Consumption | Max.3W |
| Network | |
| Communication Methods | RJ45 interface network cable Wi-Fi 2.4 GHz ZigBee 3.0 |
| Communication Distance | Wi-Fi (2.4 GHz) < 200 m ZigBee 3.0 < 200 m (Tested in open environment) |
| Antenna | Built-in |
| In the box | |
| In the box | – A3 Home Gateway |
| – Power Adapter | |
| – USB Cable | |
| – Regulatory Information | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / FCC / RoHS / REACH / WEEE / UKCA |
