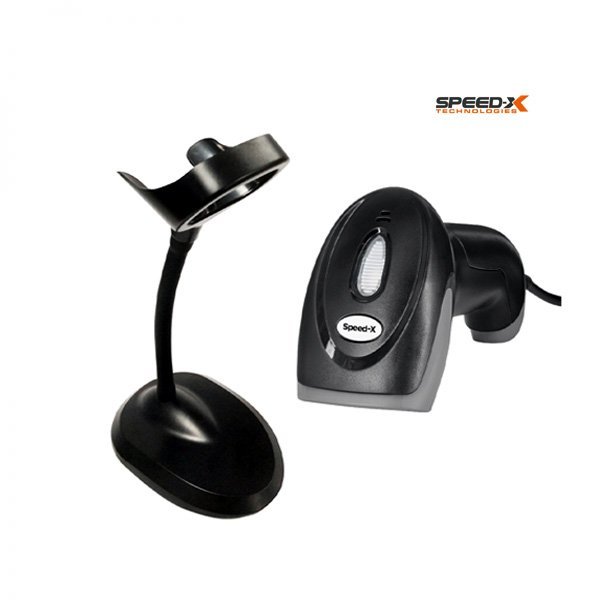

Speed-X 8400 1d Laser Handheld Barcode Scanner With Stand
Original price was: ₨ 5,500.00.₨ 4,500.00Current price is: ₨ 4,500.00.
Description
- Detail:
- Product Specification
- Electrical Characteristics
- Interface Supported USB HID KEYBOARD/USB VCP or RS-232
- Input Voltage DC 5V±5%
- Current Max:185mA
- Performance Characteristics
- Light Source 650nm visible laser diode
- Decoding speed 100±20/s
- Scanning Angle Pitch angle：-30° to 0°，0° to +30°
- Skew angle：-60° to 0°，0° to +60°
- Tilt angle：-30° to 0°，0° to +30°
- Min Resolution 1D : 4mils
- Min .PCS value >30%UPC/EAN 13(13mil)
- Decode Capability 1D：EAN13，EAN8，UPC A，UPC E，ISSN, ISBN, UPC-A ,
- UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93, CODE11, CODABAR,
- MSI, CROSS 25 CODE, CHINA POST 25 CODE, MATRIX 25CODE,
- INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited
- Environmental Characteristics
- Temperature operation：0°C-50°C
- storage：-10°C-60°C
- Humidity operation：20%~85% (no condensation)
- storage：20%~95%（no condensation）
- Physical Characteristics
- Dimensions 90mm x67mm x 168mm(L*W*H)
- Weight 130g
- Indicator Beeper, LED
- Decoding Depth of Field
- Symbology Resolution Barcode number Barcode width Nearest Farthest
- Code128 5mil 20 4.3×1.5cm 5cm 10cm
- Code128 15mil 7 4.3×1.5cm 2.5cm 26cm
- Code39 6.67mil 16 4.4×1.5cm 3cm 19cm
- Code39 20mil 4 4.3×1.5cm 3cm 32cm
- EAN13 13.34mil 13 4.2×1.5cm 2cm 24cm
