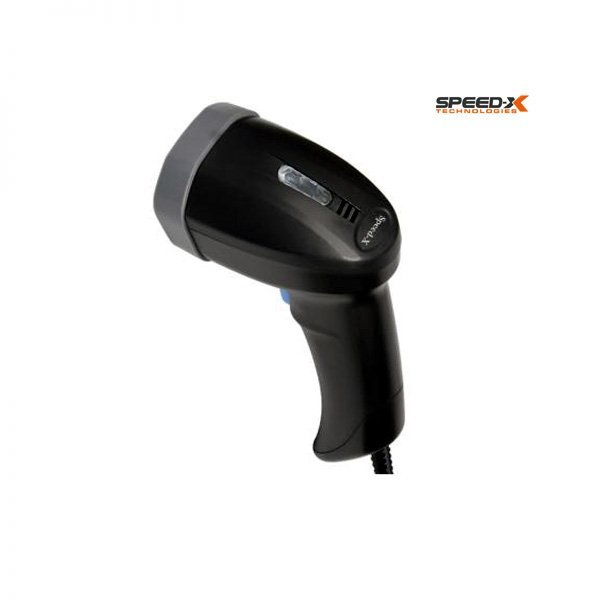

Speed-x 8500 2d Wire (with Out Stand) Cmos Handheld Barcode Scanner
Description
- Technical Parameters
- Electrical Characteristics
- Interface USB HID KEYBOARD/USB VCP
- Voltage requirement 5VDC±10%
- Current consumption Max:120mA
- Optical Characteristics
- Photo sensor CMOS array sensor
- SENSOR RESOLUTION 648X488 pixels
- Light source White LED*1
- Aim light source Red Bar led
- Performance Characteristics
- Decode angle Pitch angle:±55°
- Skew angle:±55°
- Tilt angle:±180°
- Min resolution 1D:4mil(0.127)
- Min.PCS value 〉30%UPC/EAN 13（13mil）
- Language multiple languages
- Field of View 20°(H),21°(V)
- Identification 1D：UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI
- 2D：QR, PDF417，Data Matrix
- Physical Characteristics
- Dimensions 67 mm H x97 mm W x165 mm D
- Weight 122.8g
- Environmental Characteristics
- Temp -20°to 60°C / -4°to 140°F((operation) ) -40°-to 80°C /-40°to 176°F(storage)
- Humidity 5 – 95% (operation) ) 5 – 95% (storage)
- Shock drop test 1.5m drop onto concrete surface
- Ambient Light: fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
- Regulatory
- Electrical Safety UL 60950，EN/IEC 60950
- EMI/RFI FCC Part 15 Class B,EN 55024/CISPR 22
- Environmental RoHS
- Depth of field
- Symbology Resolution(mm) Depth of field
- Code39 5.0 mil 40mm–90mm
- 100% UPCA 15.0mil 40mm—250mm
- Code 39 15.0mil 40mm–250mm
- Code 93 10.0mil 40mm–210mm
